Differential pressure transmitter | range 5-0-5" w.c. | max. pressure 10 psig.

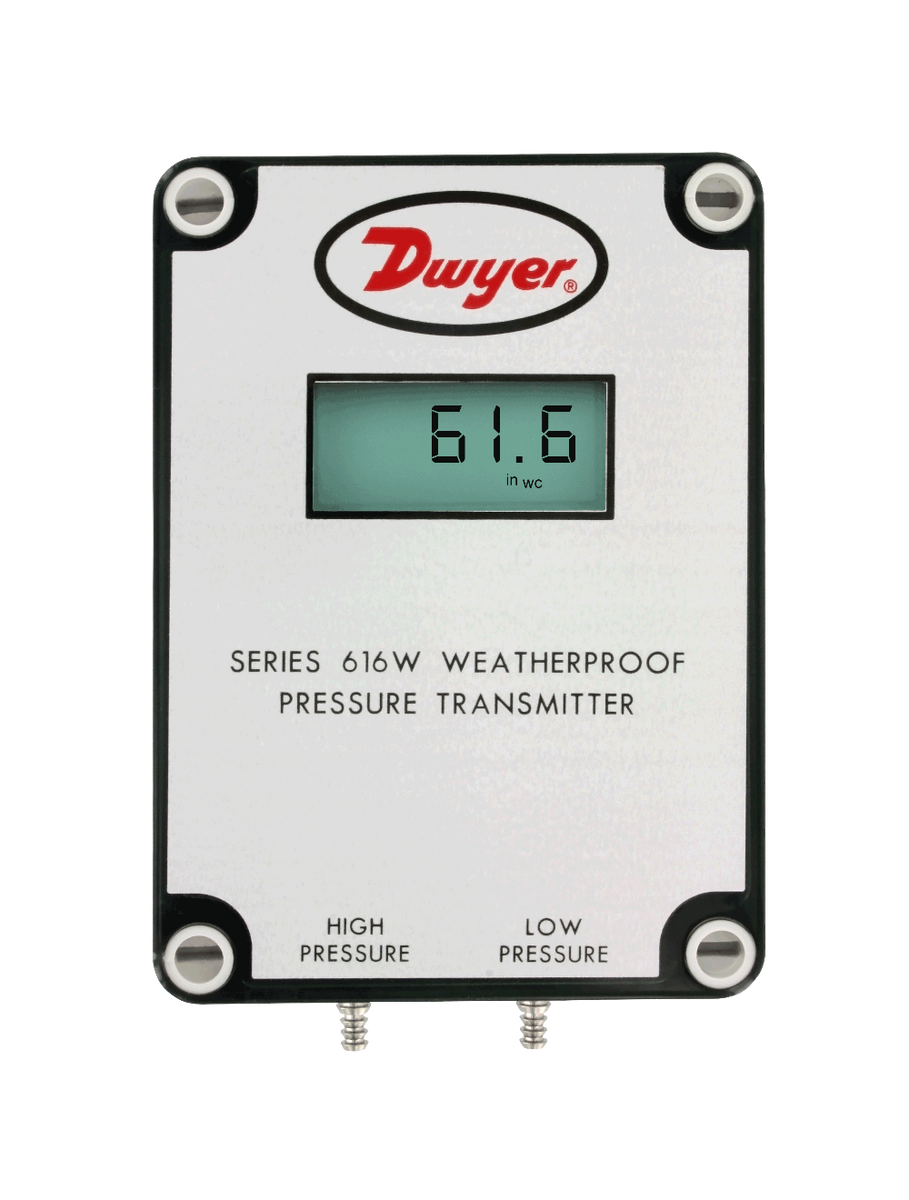

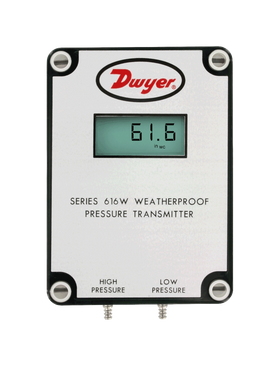

Series 616W Differential Pressure Transmitter
Positive, negative and differential pressures can be measured within a full span accuracy of ±0.25 with the Series 616W Differential Pressure Transmitter. Units are enclosed in a polycarbonate case, rated NEMA 4X (IP66) and operate by sensing the pressure of air and compatible gases then sending a standard 4-20 mA output signal. Design enables operation in 2-wire current loops. A wide range of models are available factory calibrated to specific ranges. The span and zero controls are for use when checking calibration. They are not intended for re-ranging to a significantly different span. The LCD display allows local indication of pressure.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Dust collection
- Outdoor HVAC
- Roof-top equipment
- NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
- Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
- Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
Specifications
- Series
- 616W Differential Pressure Transmitter
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- 616W Differential Pressure Transmitter
- Service
- Air and non-combustible; compatible gases.
- Wetted Materials
- Consult factory.
- Accuracy
- ±0.25% FS @ 77°F (25°C); display accuracy ±0.5%.
- Stability
- ±1% FS/yr.
- Temperature Limits
- 14 to 185°F (-10 to 85°C).
- Pressure Limits
- See Model chart on catalog page.
- Power Requirements
- 10 to 35 VDC (2-wire); 17 to 36 VDC; or isolated 21.6 to 33 VAC (3-wire).
- Output Signal
- 4 to 20 mA (2-wire); 0 to 5 VDC; or 0 to 10 VDC (3-wire).
- Zero and Span Adjustments
- Push buttons.
- Loop Resistance
- Current output: 0 to 1250 Ω max; Voltage output: Load resistance 1 kΩ (min).
- Current Consumption
- 40 mA (max).
- Electrical Connections
- 3-wire removable European style terminal block for 16 to 26 AWG.
- Process Connections
- Barbed; dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) ID rubber or vinyl tubing.
- Enclosure Rating
- NEMA 4X (IP66).
- Mounting Orientation
- Any orientation.
- Weight
- Without LCD 8.8 oz (249 g); with LCD 9.6 oz (272 g).
- Agency Approvals
- CE.
