607D-04 | Differential pressure transmitter | range 0-1.0" w.c. | Dwyer

Differential pressure transmitter, range 0-1.0" w.c.

Brand: DwyerSKU: 607D-04

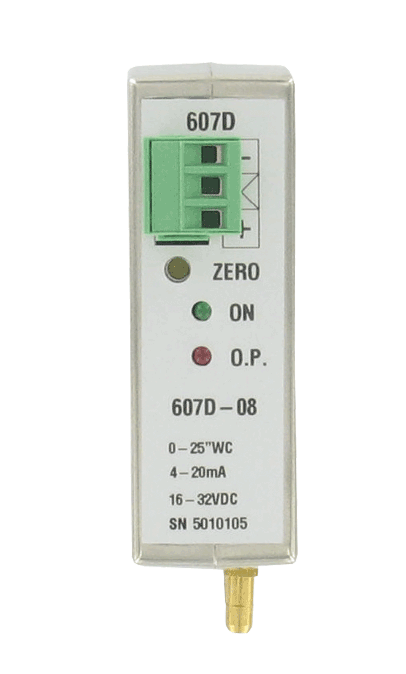

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607D-04

Jump to: Overview & Specifications Reviews

Overview Details for 607D-04

See catalog product page for full listing

Differential pressure transmitter | range 0-1.0" w.c.

Series 607D DIN Rail Mount Differential Pressure Transmitter

Mounts on 35 mm DIN Rail, LED Status Indication, ±0.25% Full Scale Accuracy

Series 607D DIN Rail Mount Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA output signal. The 607D housing is specifically designed to mount on a 35 mm DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. A wide range of models are available factory calibrated to 0.25% full scale accuracy in ranges from the very low 0.1 in w.c. to 25 in w.c. The span and zero controls are for field calibration. Units also include red/green LED status of proper transmitter operation. Versatile circuit design enables operation in 2-wire current loops.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

HVAC
Clean room control
Filter status

High accuracy at low pressure ranges provides exceptional measurement for insuring tight-control and minimizing costly out of specification conditions
DIN mountable allows use in control panels for easy access to electrical supply reducing costly cabling
Visual LED indicators provides quick status on transmitter operation saving troubleshooting time

Specifications

Series: 607D DIN Rail Mount Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 607D DIN Rail Mount Differential Pressure Transmitter
Service: Air and non-conductive; noncorrosivegases.
Wetted Materials: 302 SS; glass; nickel; silicone rubber and brass.
Accuracy: ±0.25% FS* at roomtemperature. *RSS includes nonlinearity;hysteresis and nonrepeatibility.
Stability: ±1% FS/yr.
Temperature Limits: Operating and compensated:0 to 170°F (-18 to 77°C);Storage: -65 to 185°F (-54 to 85°C).
Pressure Limits: 15 psi (100 kPa).
Thermal Effects: (Includes zero andspan) ±0.01 FS/°F; 20 to 170°F (-7 to77°C).
Power Requirements: 16 to 32 VDC.
Output Signal: 4 to 20 mA.
Zero Adjustment: Potentiometer for zero.
Response Time: Approximately 10 ms.
Max. Loop Resistance: DC: 0 to 800 Ohms.
Electrical Connections: Screw-type removeable terminal block.
Process Connections: Barbed fittingsfor 1/8" (3.12 mm) ID rubber or vinyltubing.
Mounting Orientation: Vertical; on a 1.378" (35 mm) DIN rail.
Weight: 7.0 oz (198 g).
Agency Approval: CE.
