607D-03 | Differential pressure transmitter | range 0-.5" w.c. | Dwyer
Differential pressure transmitter, range 0-.5" w.c.
Documents and manuals
Dwyer 607D-03 Documents
Overview
Details for 607D-03
Differential pressure transmitter | range 0-.5" w.c.

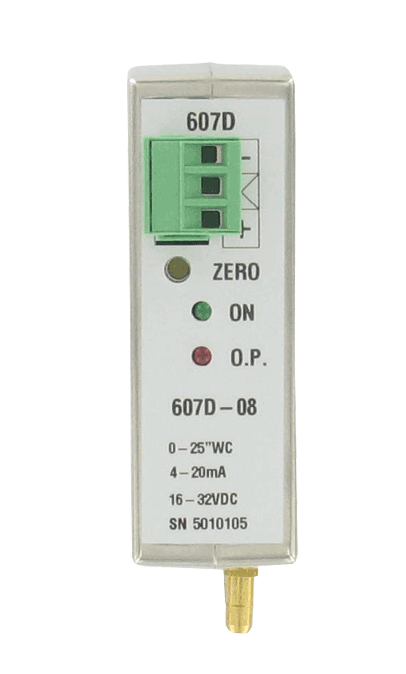

Series 607D DIN Rail Mount Differential Pressure Transmitter
Series 607D DIN Rail Mount Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA output signal. The 607D housing is specifically designed to mount on a 35 mm DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. A wide range of models are available factory calibrated to 0.25% full scale accuracy in ranges from the very low 0.1 in w.c. to 25 in w.c. The span and zero controls are for field calibration. Units also include red/green LED status of proper transmitter operation. Versatile circuit design enables operation in 2-wire current loops.
Calibration Option available under Accessories.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- HVAC
- Clean room control
- Filter status
- High accuracy at low pressure ranges provides exceptional measurement for insuring tight-control and minimizing costly out of specification conditions
- DIN mountable allows use in control panels for easy access to electrical supply reducing costly cabling
- Visual LED indicators provides quick status on transmitter operation saving troubleshooting time
Specifications
- Series
- 607D DIN Rail Mount Differential Pressure Transmitter
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- 607D DIN Rail Mount Differential Pressure Transmitter
- Service
- Air and non-conductive; noncorrosivegases.
- Wetted Materials
- 302 SS; glass; nickel; silicone rubber and brass.
- Accuracy
- ±0.25% FS* at roomtemperature. *RSS includes nonlinearity;hysteresis and nonrepeatibility.
- Stability
- ±1% FS/yr.
- Temperature Limits
- Operating and compensated:0 to 170°F (-18 to 77°C);Storage: -65 to 185°F (-54 to 85°C).
- Pressure Limits
- 15 psi (100 kPa).
- Thermal Effects
- (Includes zero andspan) ±0.01 FS/°F; 20 to 170°F (-7 to77°C).
- Power Requirements
- 16 to 32 VDC.
- Output Signal
- 4 to 20 mA.
- Zero Adjustment
- Potentiometer for zero.
- Response Time
- Approximately 10 ms.
- Max. Loop Resistance
- DC: 0 to 800 Ohms.
- Electrical Connections
- Screw-type removeable terminal block.
- Process Connections
- Barbed fittingsfor 1/8" (3.12 mm) ID rubber or vinyltubing.
- Mounting Orientation
- Vertical; on a 1.378" (35 mm) DIN rail.
- Weight
- 7.0 oz (198 g).
- Agency Approval
- CE.
