607-0 | Differential pressure transmitter | range 0-.10" w.c. | Dwyer
Differential pressure transmitter, range 0-.10" w.c.

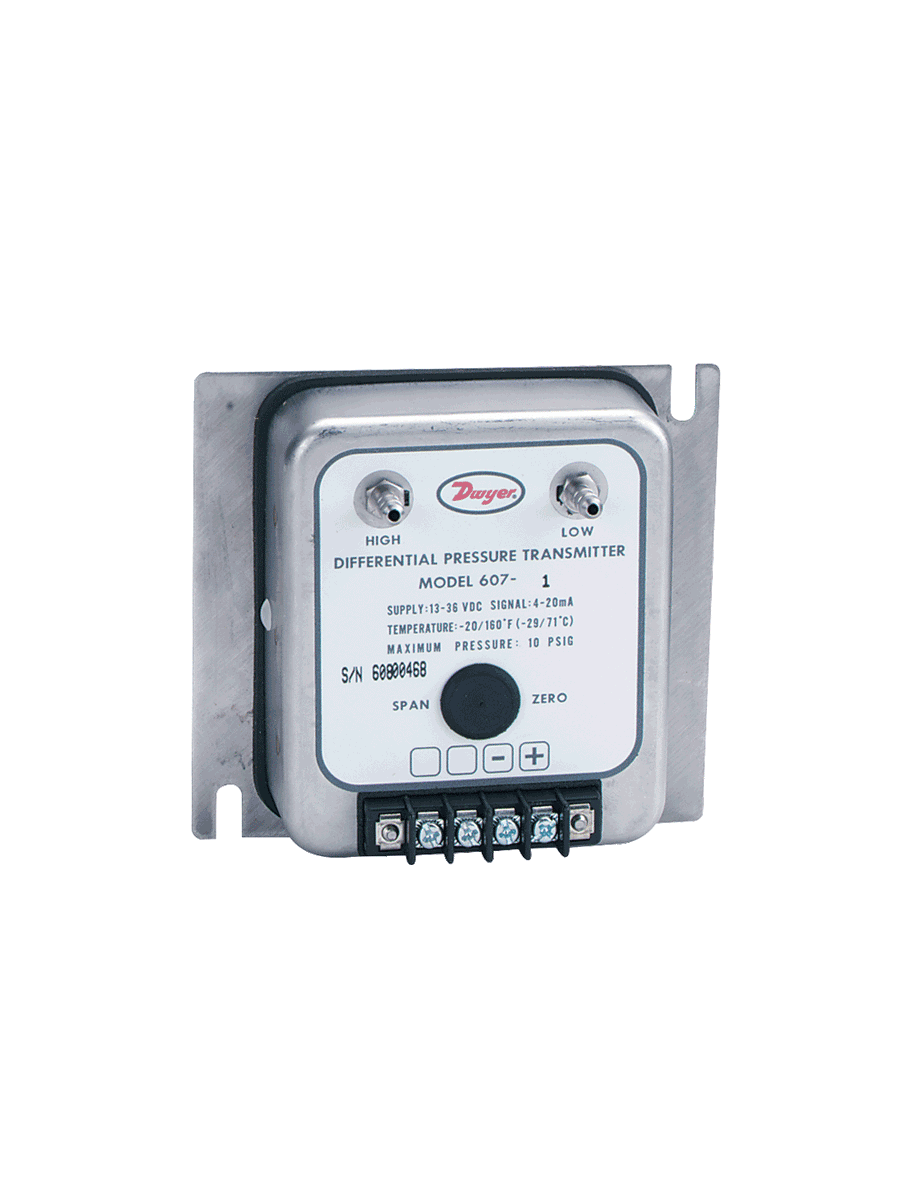

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 607-0
Documents and manuals
Dwyer 607-0 Documents
Overview
Details for 607-0
See catalog product page for full listing
Differential pressure transmitter | range 0-.10" w.c.
Series 607 Differential Pressure Transmitter
±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.
Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.
Product Applications
- Leak Detection
- Clean Room Control
- Lab and Fume Hood Pressure Control
- High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
- Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
- Stainless steel housing meets standards for lab and clean room applications
Specifications
- Series
- 607 Differential Pressure Transmitter
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- 607 Differential Pressure Transmitter
- Service
- Air and non-conductive; non-corrosive gases.
- Wetted Materials
- Consult factory.
- Accuracy
- ±0.5% or ±0.25% FS.
- Stability
- ±0.5% FS/yr.
- Temperature Limits
- -20 to 160°F (-29 to 71°C); 10 to 95% RH.
- Pressure Limits
- 10 psig (0.69 bar).
- Compensated Temperature Range
- 35 to 135°F (2 to 57°C).
- Thermal Effects
- ±0.015% F.S./°F (zero and span).
- Power Requirements
- 12 to 36 VDC.
- Output Signal
- 4 to 20 mA DC; 2-wire.
- Zero and Span Adjustments
- Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
- Response Time
- 250 ms max.
- Loop Resistance
- 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
- Current Consumption
- 3.6 mA (min).
- Electrical Connections
- Screw terminals.
- Process Connections
- Barbed stainless steel for 3/16" I.D. tubing.
- Housing
- 300 Series stainless steel (NEMA 2).
- Weight
- 1.04 lb (472 g).
- Agency Approvals
- CE.
