Documents: 477-00T-AV

166T Instruction Manual 477AV Instruction Manual Series 477-1T-AV Catalog Page More Info

477-00T-AV | Air velocity kit | 0-4" w.c. | Dwyer

Air velocity kit, 0-4" w.c.

Brand: DwyerSKU: 477-00T-AV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 477-00T-AV

Jump to: Overview & Specifications Reviews

Overview Details for 477-00T-AV

See catalog product page for full listing

Air velocity kit | 0-4" w.c.

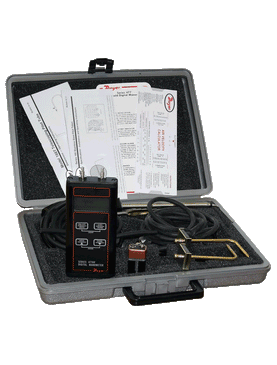

Series 477-1T-AV Air Velocity Kits

Digital Manometer and Pitot Tube for Balancing System Air Flows

Convenient all-in-one kit is small, light and easy to use. No set-up or leveling needed. Digital manometer reads from 0-20" w.c. with ±0.5% F.S. accuracy. The Series 477AV stores up to 40 readings in memory for later reference, with selectable English/Metric pressure, flow and velocity units that are visible on a large, backlit 0.4" LCD readout. Both audible and visual overpressure alarms and a “low battery° warning are standard features.

Complete Kit Includes:

Series 477AV Handheld Digital Manometer
Model 166T, 36" Telescoping Stainless Steel Pitot Tube, fully adjustable from 11.5 to 36 inches (29.2 to 91.4 cm)
Two No. A-303 Static Pressure Tips with Magnetic Mounting
Two 4-1/2 Ft. Lengths 3/16" I.D. Rubber Tubing
No. A-397 Step drill for 3/16" - 1/2" Holes in 1/16" Increments
No. A-532 AV Slide Chart
9 V Alkaline Battery
Fitted Polyethylene Case
