4616B | Differential pressure gage | range 0-16 ft w.c. | available with brass case only. | Dwyer
Differential pressure gage, range 0-16 ft w.c., available with brass case only.
Documents and manuals
Dwyer 4616B Documents
Overview
Details for 4616B
Differential pressure gage | range 0-16 ft w.c. | available with brass case only.

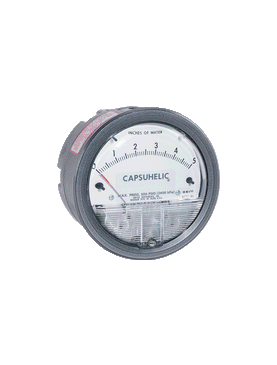

Series 4000 Capsuhelic® Differential Pressure Gage
The Series 4000 Capsuhelic® Differential Pressure Gage is designed to give fast, accurate indication of differential pressures. The gage may be used as a readout device when measuring flowing fluids, pressure drop across filters, liquid levels in storage tanks and many other applications involving pressure, vacuum or differential pressure. The pressure being measured is held within a capsule which is an integral part of the gage. This containment of the pressure permits the use of the gage on system pressures of up to 500 psig, even when differentials to be read are less than 0.1 in w.c.
Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
NIST CALIBRATION available in Product Configurator.
DID YOU KNOW that you can add YOUR logo to our Capsuhelic® Gage, call customer service for details.
Product Applications
- Fluid flow
- Liquid storage tanks
- Filter pressure drops
- Vacuum or differential pressure
- Gage capsule permits high-pressure usage with small differentials
- Zero and range adjustments outside of gage means no disassembly in normal service
- Time-proven, simple, frictionless movement that permits full scale readings as low as 0.5 in w.c.
- Diaphragm-actuated versus liquid filled gage supports outdoor use
Specifications
- Series
- 4000 Capsuhelic® Differential Pressure Gage
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- 4000 Capsuhelic® Differential Pressure Gage
- Service
- Aluminum Case: Air and compatible gases and oil based liquids. Brass Case: Air and compatible gases and water based liquids.
- Wetted Materials
- Consult factory.
- Housing
- Die cast aluminum with impregnated hard coating; standard. Optional forged brass housing is required for water or water based fluids.Special material diaphragms available; contact factory.
- Accuracy
- ±3% of FS at 70°F (21.1°C). (±4% on 4200; 4210; 4215; 4220; 4300; 4400; and 4500).
- Pressure Limits
- -20" Hg to 500 psig. (-0.677 bar to 34.4 bar).
- Temperature Limits
- 20 to 200°F (-6.67 to 93.3°C).
- Size
- 4" (101.6 mm) diameter dial face.
- Mounting Orientation
- Diaphragm in vertical position. Consult factory for other position orientations.
- Process Connections
- 1/4" female NPT high and low pressure taps; duplicated - one pair top for air and gas; and one pair bottom for liquids.
- Weight
- 3 lb; 3 oz (1.45 kg) aluminum case; 7 lb; 13 oz (3.54 kg) brass case.
- Standard Accessories
- Two 1/4" NPT plugs for duplicate pressure taps; four flush mounting adapters with screws and four surface mounting screws.
