3HBAV0412 | Three-Way detachable electric ball valve | Cv value 11.2 | 1" npt | 120 vac | floating | Dwyer
Three-Way detachable electric ball valve, Cv value 11.2, 1" npt, 120 vac, floating

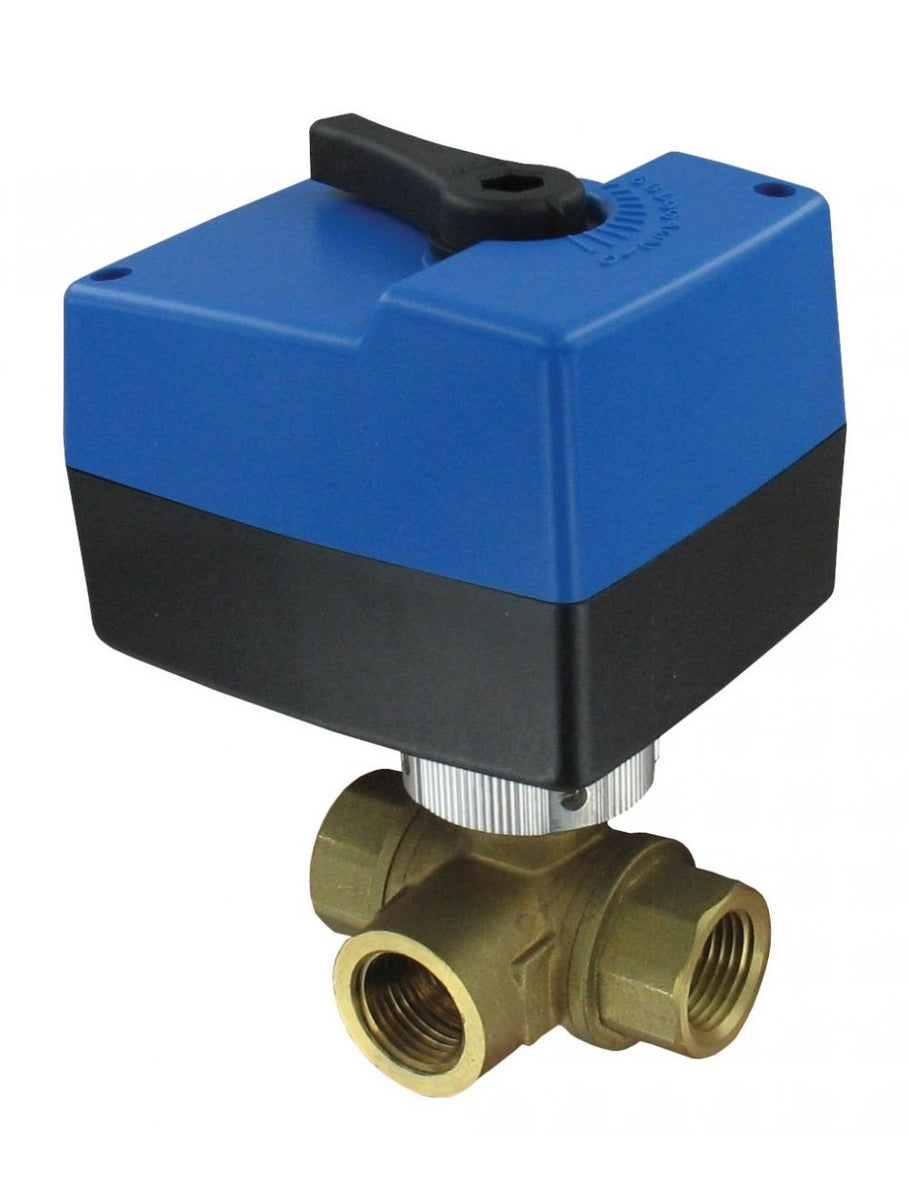

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3HBAV0412
Documents and manuals
Dwyer 3HBAV0412 Documents
Overview
Details for 3HBAV0412
See catalog product page for full listing
Three-Way detachable electric ball valve | Cv value 11.2 | 1" npt | 120 vac | floating
Series 3HBAV Three-Way Detachable Electric Ball Valve
Floating or Modulating, Position Indicator
The Series 3HBAV is an electrical ball valve ideal for flow control in hot andcold water HVAC systems. These valves are typically used in conjunction withair conditioning systems, heating systems, water treatment and productionindustries. The 3HBAV is electrically driven open and/or closed via abidirectional AC motor. The electrical valve offers a detachable actuator withposition switches and indicator. The 3HBAV is available with modulating orfloating actuators.
Product Applications
- Air Conditioning Systems
- Heating Systems
- Water Treatment
- Production Industries
- Manual override
- Detachable actuator
- High Cv values
Specifications
- Series
- 3HBAV Three-Way Detachable Electric Ball Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- 3HBAV Three-Way Detachable Electric Ball Valve
- Service
- Compatible fluids.
- Body
- 3-way; NC.
- Line Size
- 1/2 to 2" NPT.
- End Connections
- Female NPT.
- Pressure Limits
- Max: 375 psi (25 bar); Close off: 87 psi (6 bar).
- Temperature Limit
- Ambient: -22 to 158°F (-30 to 70°C);Process: 23 to 122°F (-5 to 50°C).
- Wetted Materials
- Brass; SS; NBR; PTFE.
- Input
- Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).
- Power Requirements
- 120 VAC or 24 VAC; 50/60 Hz; single phase.
- Power Consumption
- Floating: 3 to 5 VA; Modulating: 4 VA.
- Electrical Connection
- 18 AWG.
- Cycle Time (per 90°)
- 1/2 to 1": 45 s.; 1-1/4 to 2": 50 s.
- Enclosure Rating
- NEMA 1 (IP10).
- Housing Material
- Plastic; nylon; and polyoxymethylene.
- Weight
- See table on catalog page.
