3400-AL-10-NM-2 | Smart pressure transmitter | range 0-15 psi | Dwyer

Smart pressure transmitter, range 0-15 psi

Brand: DwyerSKU: 3400-AL-10-NM-2

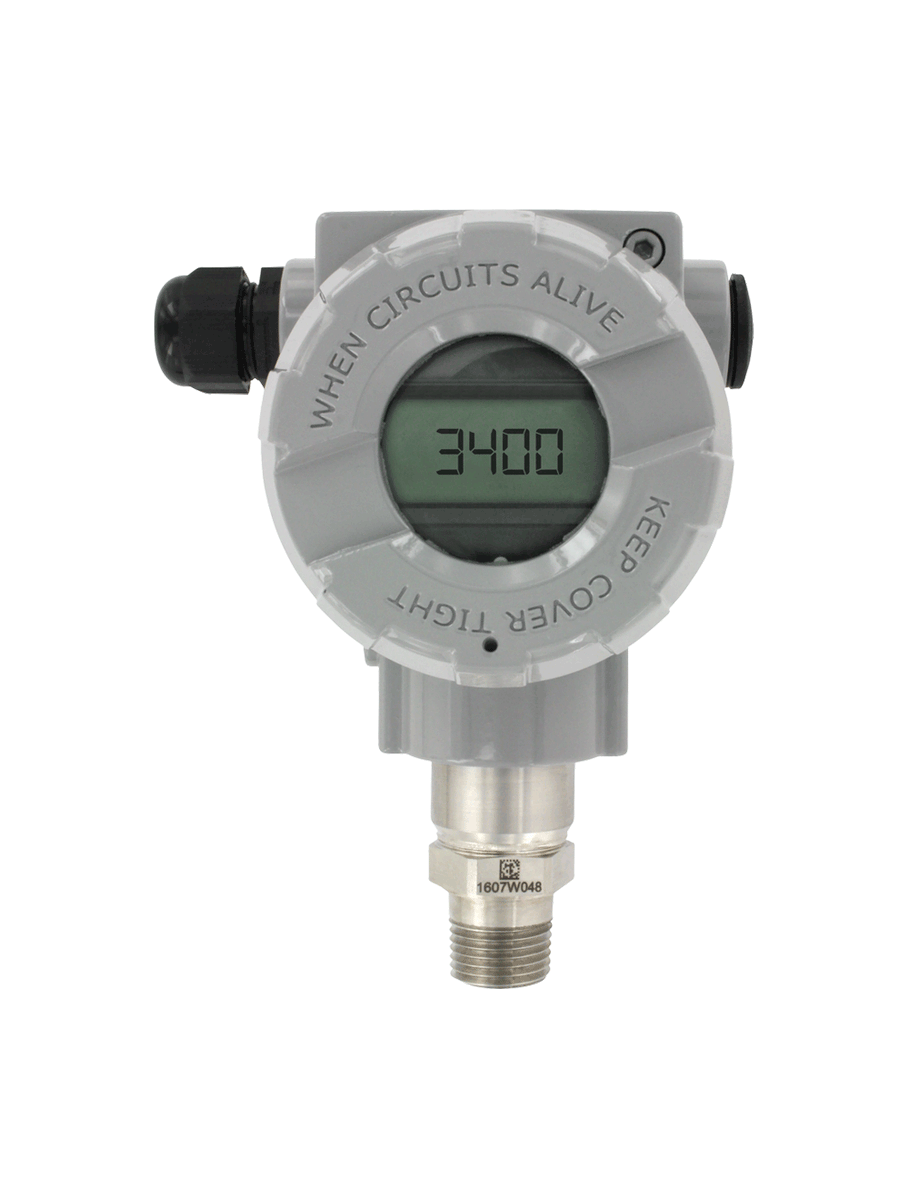

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3400-AL-10-NM-2

Jump to: Overview & Specifications Reviews

Overview Details for 3400-AL-10-NM-2

See catalog product page for full listing

Smart pressure transmitter | range 0-15 psi

Series 3400 Smart Pressure Transmitter

HART® Communication, Push Button Configuration, Rangeability (Up to 100:1)

The Series 3400 Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and is programmable using HART® Communication. The Series 3400 is capable of being configured with the zero and span buttons (a field calibrator is not required for configuration). The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3400 can be configured to be ATEX or IECEX approved for use in hazardous (classified) locations. The rangeability allows the smart transmitter to be configured to fit most applications.

Product Applications

Water and wastewater
Chemical and petrochemical
Pulp and paper
Oil and gas
Food and beverage

High accuracy (±0.075% FS)
Rangeability (up to 100:1)
Completely configurable using zero/span buttons (no calibrator required)
Fail-mode process function
Automatic ambient temperature compensation

Specifications

Series: 3400 Smart Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 3400 Smart Pressure Transmitter
Service: Compatible gases; steam; liquids or vapors.
Wetted Materials: 316L SS.
Accuracy: ±0.075% FS (@ 20°C).
Rangeability: Up to 100:1 turn down.
Stability: ≤0.075% FSO/3 years.
Temperature Limits: Ambient: -40 to 185°F (-40 to 85°C); Process with -DS: -40 to400°F (-40 to 204°C).
Thermal Effect: < ±0.05% span/10°C.
Power Requirements: 10 to 55 VDC.
Output Signal: 4 to 20 mA.
Response Time: 16 to 480 ms (programmable).
Damping Time: 0 to 60 seconds.
MTBF (Mean Time Between Failure): 126 years.
MTFF (Mean Time to Failure): MTBF minus 8 h.
Electrical Connection: Packing gland M20x1.5; two 1/2" female NPT conduit; screw terminal.
Process Connections: 1/2" female or male NPT.
Enclosure Rating: NEMA 4X IP66/IP67.
Agency Approvals: CE; -IS; -FP suffix: ATEX Compliant CE 0518 II 2G (Ex)ia/db IIC T6/T5 Gb Ta<80°C; T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013;EN 60079-1:2014; EN 60079-11:2012; EN 60079-26:2015; EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificateof Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011; IEC60079-1:2014-06; IEC 60079-11:2011; IEC 60079-26:2006; IEC 60079-31:2013.
