32DZ1111 | Temperature/process controller | thermocouple inputs | SSR outputs. | Dwyer

Temperature/process controller, thermocouple inputs, SSR outputs.

Brand: DwyerSKU: 32DZ1111
Dwyer | 32DZ1111

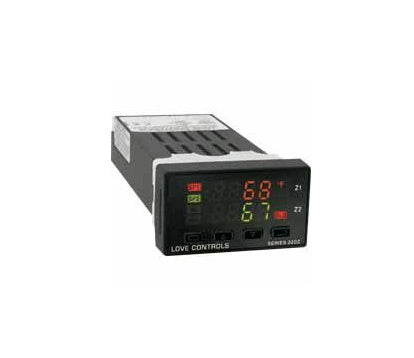

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 32DZ1111

Overview Details for 32DZ1111

See catalog product page for full listing

Temperature/process controller | thermocouple inputs | SSR outputs.

Series 32DZ Temperature/Process Controller

1/32 DIN, Dual Zone Control, Fuzzy Logic, Self-Tune PID

The Series 32DZ Temperature/Process Controller set a new standard in 1/32 DIN power, flexibility, and value. Love Controls is proud to be the creator of the world’s first dual zone control in the 1/32 DIN size. Ease of use is assured from the creators of the world’s first dual display 1/32 DIN temperature/process control. The 32DZ offers five thermocouple type inputs. Each zone offers a single set point with mechanical relay. Standard features include independent Fuzzy Logic, Self-Tune, and Peak/Valley indication for each zone. Process protection is provided by open sensor protection, shorted sensor protection, input rate of change protection, and loop break protection. Options for the 32DZ include RS-485 Serial Communication. Designed and built in the USA, the 32DZ offers the highest levels of features, function, and quality available today.

  • Large Dual Display
  • Independent Self-Tune for Each Zone
  • Independent Fuzzy Logic for Each Zone
  • Loop Break Protection
  • Peak/Valley Indication
  • Illuminated Keypad
  • Four Password Protected Security Levels

Specifications

Series
32DZ Temperature/Process Controller
Category/Type
Process Control
Type
Process Controllers
Series
32DZ Temperature/Process Controller
Inputs
Thermocouple; Type J; K; E; L; and N.
Display
Two 4-digit; 7 segment; 0.25" high (6.35 mm) LEDs.
Accuracy
±0.25% of span; ±1 least significant digit.
Supply Voltage
100 to 240 VAC; nominal; +10 - 15%; 50 to 400 Hz single phase; 132 to 240 VDC; nominal; +10 - 20%.
Power Consumption
5 VA maximum.
Operating Temperature
14 to 131°F (-10 to 55°C).
Memory Backup
Nonvolative memory. No batteries required.
Control Output Ratings
Relay: SPST; 3A @ 240 VAC resistive; 1.5A @ 240 VAC inductive; Pilot Duty Rating: 250 VA; 2A @ 120 VAC or 1A @ 240 VAC; Proportional Current: 4 to 20 mA; SSR: 0.75 A at 240 VAC resistive at 77°F (25°C); de-rates to 1.0 A at 130°F (55°C); minimum load of 100 mA; Voltage: Switched 5 VDC.
Weight
4 oz (114 g).
Front Panel Rating
NEMA 4X (IP66).
