3200G-2-FM-1-1 | Smart pressure transmitter | range -14.5 to 217 psi | (factory set 0 to 217 psig). | Dwyer

Smart pressure transmitter, range -14.5 to 217 psi, (factory set 0 to 217 psig).

Brand: DwyerSKU: 3200G-2-FM-1-1

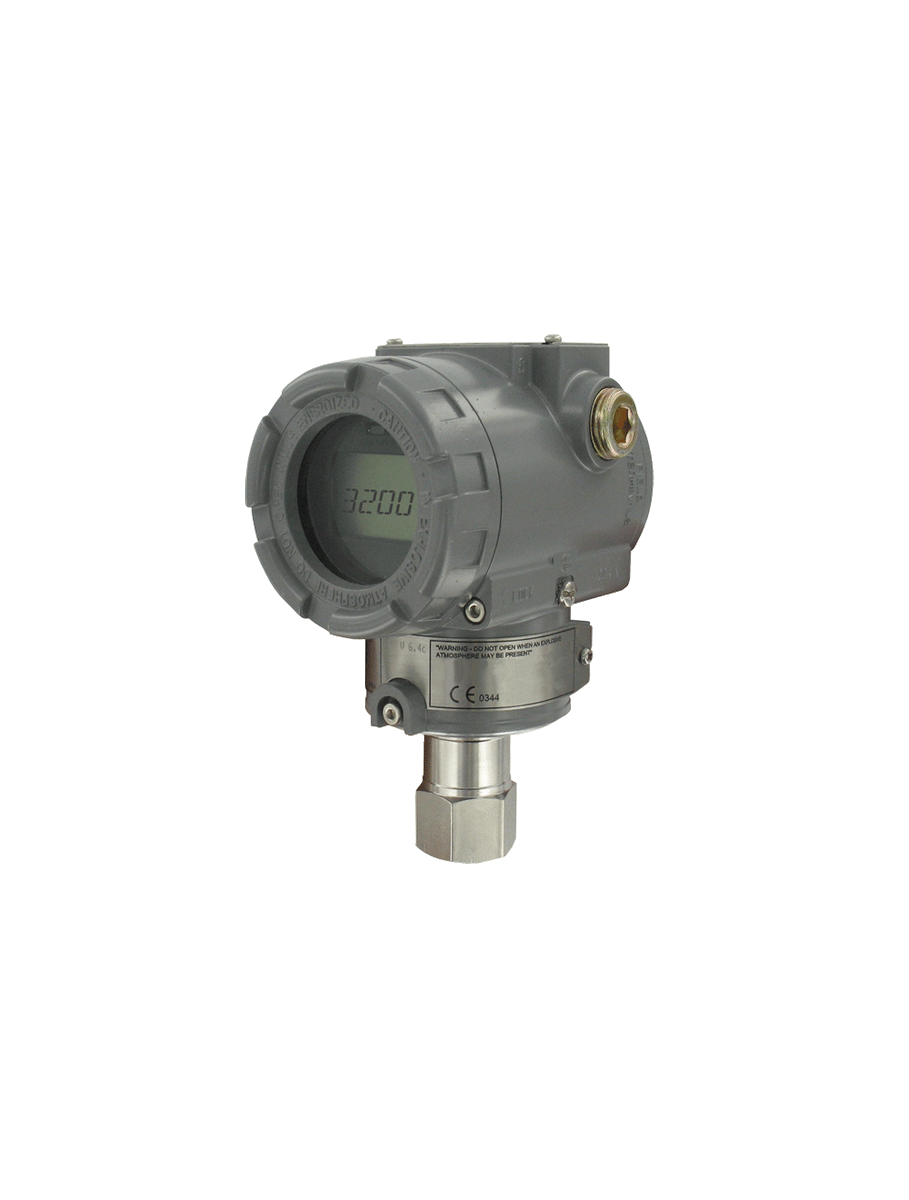

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3200G-2-FM-1-1

Jump to: Overview & Specifications Reviews

Overview Details for 3200G-2-FM-1-1

See catalog product page for full listing

Smart pressure transmitter | range -14.5 to 217 psi | (factory set 0 to 217 psig).

Series 3200G Explosion-proof Pressure Transmitter

HART® Communication, Push Button Configuration, Rangeability (100:1)

The Mercoid® Series 3200G Explosion-Proof Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Product Applications

Water and wastewater
Chemical and petrochemical
Pulp and paper
Oil and gas
Food and beverage

Completely configurable using zero/span buttons (no calibrator required)
Rangeablity (100:1)
High accuracy (±0.075%)
Automatic ambient temperature compensation
Fail-mode process function

Specifications

Series: 3200G Explosion-proof Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 3200G Explosion-proof Pressure Transmitter
Service: Compatible gases; steam; liquids or vapors.
Wetted Materials: 316L SS.
Accuracy: ±0.075% FS (@ 20°C).
Rangeability: 100:1 turn down.
Stability: ±0.125% FSO/yr.
Temperature Limits: Process: -40 to 248°F (-40 to 120°C); Ambient: Without LCD -40 to 185°F (-40 to 85°C); With LCD -22 to 176°F (-30 to 80°C).
Thermal Effect: ±0.125% span/32°C.
Power Requirements: 11.9 to 45 VDC.
Output Signal: 4 to 20 mA / HART® Communication.
Response Time: 0.12 seconds.
Damping Time: 0.25 to 60 seconds.
Loop Resistance: Operation: 0 to 1500 Ω HART® Communication: 250 to 500 Ω.
Electrical Connection: Two 1/2" female NPT conduit; screw terminal.
Process Connections: 1/2" female NPT.
Display: Optional: 5 digit LCD.
Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I; Div I Groups A; B; C and D.
Weight: 5.5 lb (2.5 kg).
Agency Approvals: ATEX; CE; FM.
