3100MP-2-FM-1-1 | Smart differential pressure transmitter | range 0-30" wc | with aluminum housing | FM approved | multiplanar | Dwyer

Smart differential pressure transmitter, range 0-30" wc, with aluminum housing, FM approved, multiplanar

Brand: DwyerSKU: 3100MP-2-FM-1-1

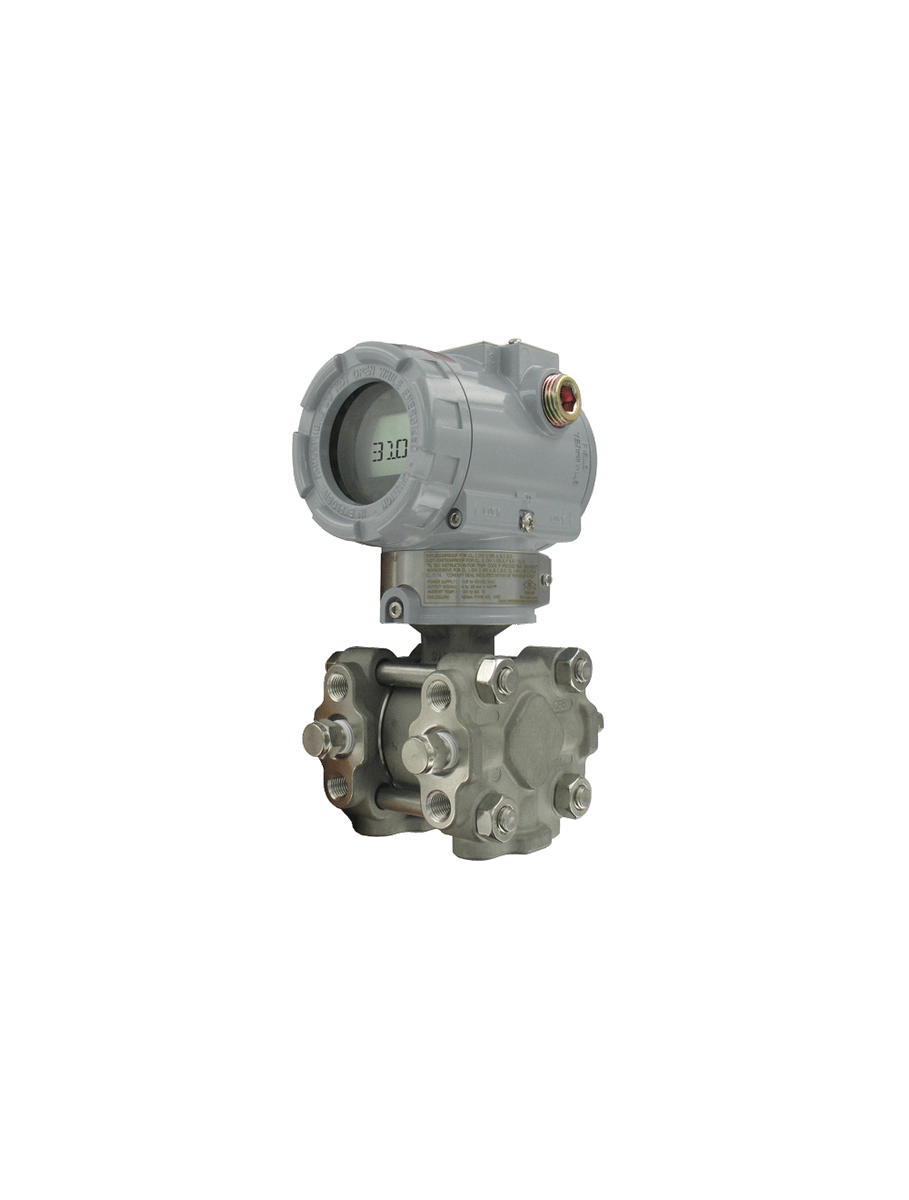

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3100MP-2-FM-1-1

Jump to: Overview & Specifications Reviews

Overview Details for 3100MP-2-FM-1-1

See catalog product page for full listing

Smart differential pressure transmitter | range 0-30" wc | with aluminum housing | FM approved | multiplanar

Series 3100MP Explosion-Proof Multiplanar Differential Pressure Transmitter

HART®, Push Button Configuration, Rangeability (100:1)

The Mercoid® Series 3100MP Multiplanar Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The multiplanar design simplifies installation, saving operator time and money during set up. The 3100MP can be installed vertically without adaptors or brackets regardless of the process connection orientation. The multiplanar footprint fits standard manifold valves and averaging flow sensors. The Series 3100MP is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100MP is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Product Applications

Flow measurement
Level monitoring
Filter or pump differential pressure
Critical process monitoring

Completely configurable using zero/span button (no calibrator required)
Rangeability (100:1)
Multiplanar
Fits standard manifold valves
Automatic sensor temperature compensation
Easy installation

Specifications

Series: 3100MP Explosion-Proof Multiplanar Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 3100MP Explosion-Proof Multiplanar Differential Pressure Transmitter
Service: Compatible gases; steam; liquids or vapors.
Wetted Materials: 316L SS.
Accuracy: ±0.075% FS (@ 20°C).
Rangeability: 100:1 turn down.
Stability: ±0.125% FSO/yr.
Temperature Limits: >Process: -40 to 248°F (-40 to 120°C); Ambient: Without LCD: -40 to 185°F (-40 to 85°C); With LCD: -22 to 176°F (-30 to 80°C).
Pressure Limits: Max. pressure: Range: -14.5 to 2000 psi; Burst pressure: 10000 psi.
Thermal Effect: ±0.125% span/32°C.
Power Requirements: 11.9 to 45 VDC.
Output Signal: 4 to 20 mA /HART® Communication.
Response Time: 0.12 s.
Damping Time: 0.25 to 60 s.
Loop Resistance: >Operation: 0 to 1500 Ω; HART® Communication: 250 to 500 Ω.
Electrical Connection: Two 1/2" female NPT conduit; screw terminal.
Process Connection: 1/4" female NPT.
Display: Optional 5 digit LCD.
Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I; Div I; Groups A; B; C and D.
Weight: 8.6 lb (3.9 kg).
Agency Approvals: CE; FM; ATEX option available (consult factory).
