3100D-2-FM-1-1-LCD | Smart differential pressure transmitter | range 0-30" w.c. | Dwyer

Smart differential pressure transmitter, range 0-30" w.c.

Brand: DwyerSKU: 3100D-2-FM-1-1-LCD
Dwyer | 3100D-2-FM-1-1-LCD

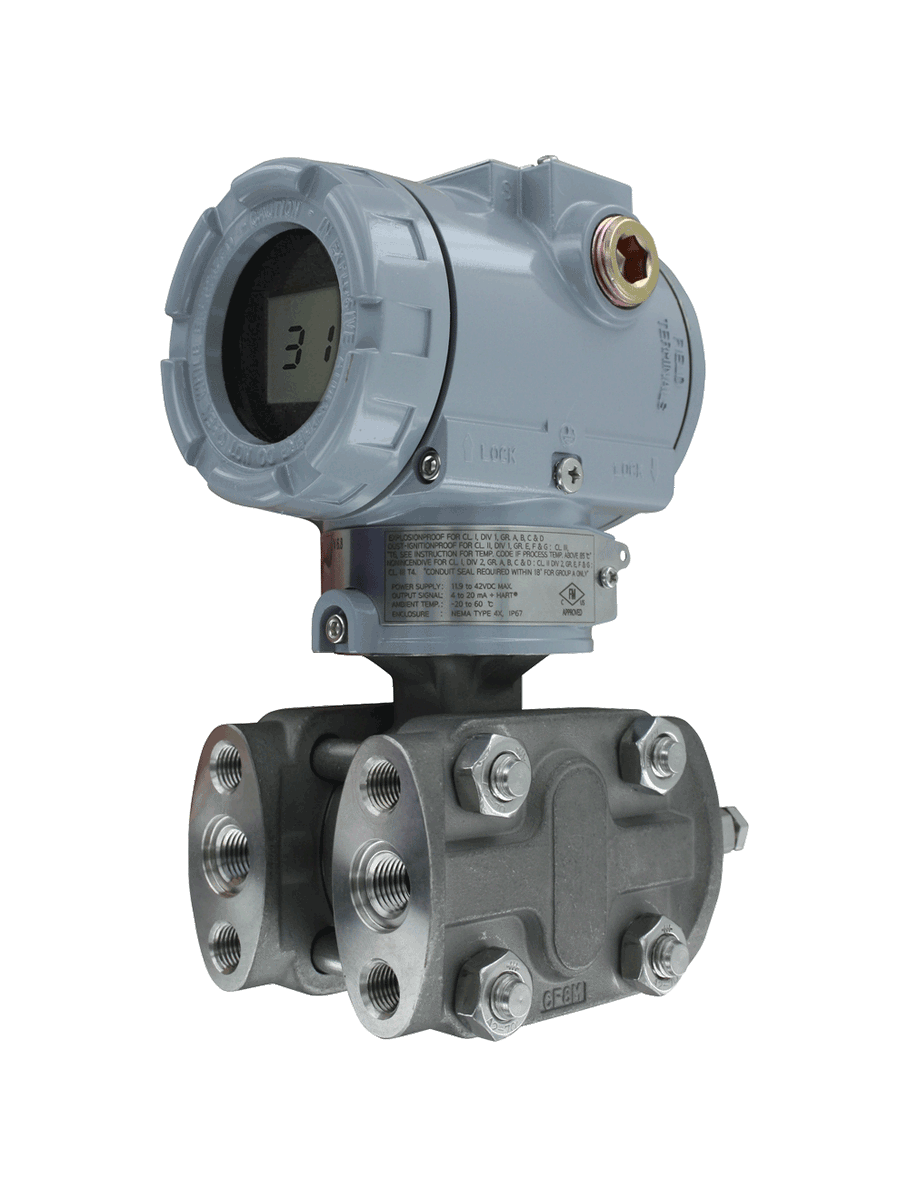

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3100D-2-FM-1-1-LCD

Overview Details for 3100D-2-FM-1-1-LCD

See catalog product page for full listing

Smart differential pressure transmitter | range 0-30" w.c.

Series 3100D Explosion-proof Differential Pressure Transmitter

HART® Communication, Push Button Configuration, Rangeability (100:1)

Mercoid® Series 3100D Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3100D is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100D is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Product Applications

  • Flow measurement
  • Level monitoring
  • Filter or pump differential pressure
  • Critical process monitoring
  • Configurable using zero/span buttons means no calibrator required reducing time to install and running
  • Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
  • High accuracy (±0.075%) provides exceptional measurement for ensuring tight control and minimizing costly out of specification conditions
  • Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
  • Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
  • A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication

Specifications

Series
3100D Explosion-proof Differential Pressure Transmitter
Category/Type
Pressure
Type
Differential Pressure
Series
3100D Explosion-proof Differential Pressure Transmitter
Service
Compatible gases; steam; liquids or vapors.
Wetted Materials
316L SS; fluoroelastomer.
Accuracy
±0.075% FS (@ 20°C).
Rangeability
100:1 turn down.
Stability
±0.125% FSO/yr.
Temperature Limits
Process: -40 to 248°F (-40 to 120°C); Ambient (without LCD): -40 to 185°F (-40 to 85°C); Ambient (with LCD): -22 to 176°F (-30 to 80°C).
Pressure Limits
Max. pressure: Range: -14.5 to 2000 psi; Burst pressure: 10000 psi.
Thermal Effect
±0.125% span/32°C.
Power Requirements
11.9 to 45 VDC.
Output Signal
4 to 20 mA/HART® Communication.
Response Time
0.12 seconds.
Damping Time
0.25-60 seconds.
Loop Resistance
Operation: 0 to 1500 Ohm; HART® Communication: 250 to 500 Ohm.
Electrical Connection
Two 1/2" female NPT conduit; screw terminal.
Process Connection
1/4" female NPT.
Display
Optional 5 digit LCD.
Enclosure Rating
NEMA 4X (IP66) and explosion-proof for Class I; Div I; Groups A; B; C and D.
Weight
8.6 lb (3.9 kg).
Agency Approvals
CE; FM; ATEX option available (consult factory).
