16L2034 | Limit Control | (1) NO relay and (1) NC relay output. | Dwyer
Limit Control, (1) NO relay and (1) NC relay output.

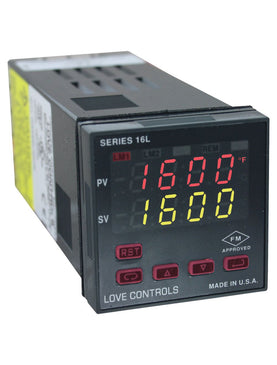

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 16L2034
Documents and manuals
Dwyer 16L2034 Documents
Overview
Details for 16L2034
See catalog product page for full listing
Limit Control | (1) NO relay and (1) NC relay output.
Series 16L Limit Control
FM Approved, Large Dual Display, Universal Input
The Series 16L Limit Control offers FM approved limit control with universal input, single set point or dual set point control.
Product Applications
- Gas fired heater limit control
- Remote or integral reset button
- Peak and valley temperature indication
- Open sensor protection
Specifications
- Series
- 16L Limit Control
- Category/Type
- Process Control
- Type
- Process Controllers
- Series
- 16L Limit Control
- Selectable Input
- 10 Thermocouple; 4 RTD; DC Voltage; or DC current selectable.
- Display
- Two 4 digit; 7 segment 0.3" (7.62 mm) high LEDs.
- Accuracy
- ±0.25% of span; ±1 least significant digit.
- Power Requirements
- 100 to 240 VAC; nominal; +10 - 15%; 50 to 400 Hz. single phase; 132 to 240 VDC; nominal; +10 - 20%.
- Power Consumption
- 5 VA maximum.
- Temperature Limits
- 14 to 131°F (-10 to 55°C).
- Memory Backup
- Nonvolatile memory. No batteries required.
- Output
- Relay: SPST; 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive.
- Weight
- 8 oz (227 g).
- Front Panel Rating
- NEMA 4X (IP66).
- Agency Approvals
- FM; cULus.
