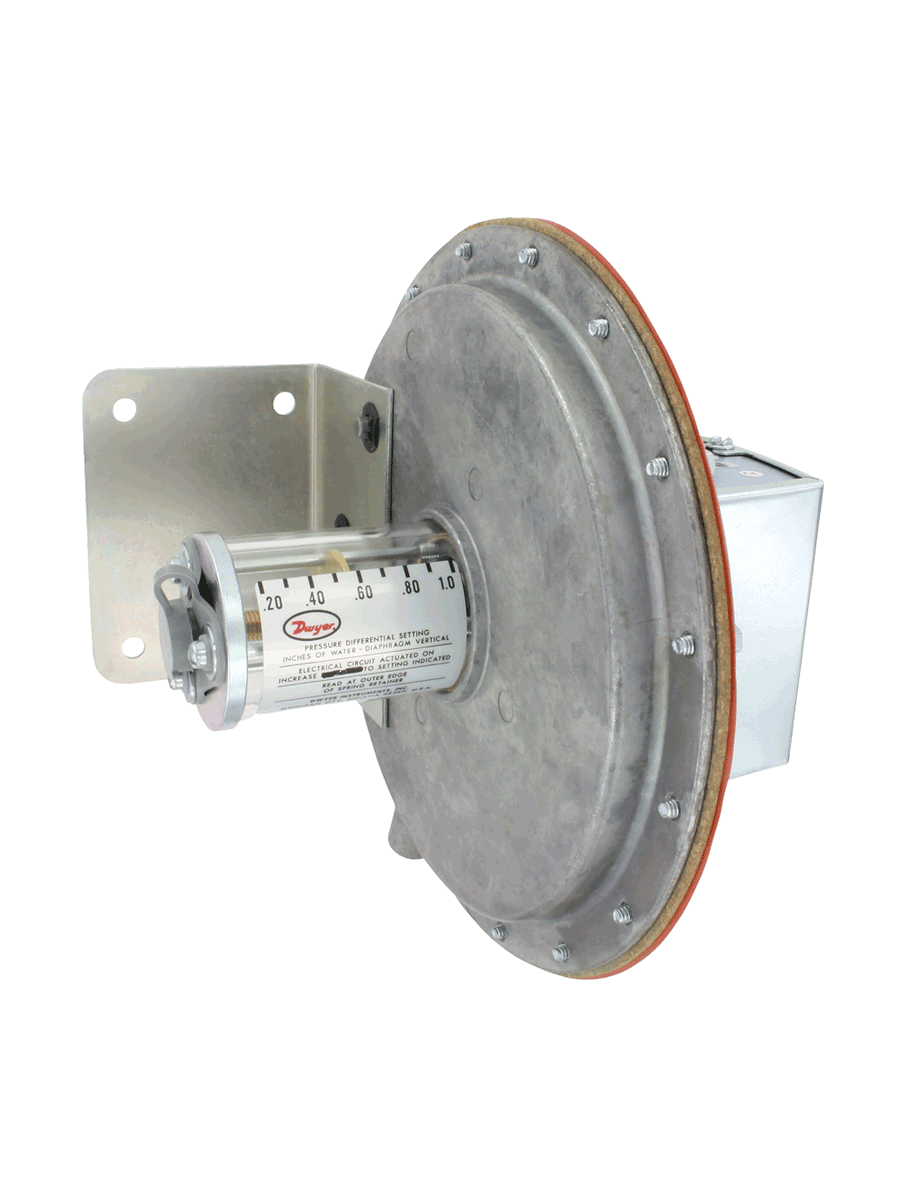

1638-5 | Large diaphragm pressure switch | range 2.0-6.0" w.c. | approx deadband @ 0.07 min. set point | 0.25 max. set point. | Dwyer

Large diaphragm pressure switch, range 2.0-6.0" w.c., approx deadband @ 0.07 min. set point, 0.25 max. set point.

Brand: DwyerSKU: 1638-5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1638-5

Jump to: Overview & Specifications Reviews

Overview Details for 1638-5

See catalog product page for full listing

Large diaphragm pressure switch | range 2.0-6.0" w.c. | approx deadband @ 0.07 min. set point | 0.25 max. set point.

Series 1630 Large Diaphragm Pressure Switches

Visual Set Point Adjustment in 5 Standard Ranges, 0.05" to 12" w.c. Repetitive Accuracy within ±1%

On the Series 1630 Large Diaphragm Pressure Switch our highest precision conventional pressure switch provides maximum dependability. In addition, it incorporates a visible set point indicator for maximum convenience. UL and CSA listed, FM approved for general service. Electrical capability of 15 amps handles most small electrical loads. For use only with air or compatible gases.

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Product Applications

Damper positioning
Duct air control
Air conditioning
Industrial service

Visible set point indicator simplifies operation and trouble shooting
Large diaphragm provides low range accuracy providing precise control
Current loads of up to 15 amps supports most small electrical loads supporting a broader range of HVAC and Process applications without the need for additional relays and components

Specifications

Series: 1630 Large Diaphragm Pressure Switches
Category/Type: Pressure
Type: Differential Pressure
Series: 1630 Large Diaphragm Pressure Switches
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -30 to 110°F (-34.4 to 43.3°C).
Pressure Limits: 10 psig (68.95 kPa) continuous; 25 psig (172.4 kPa) surge.
Switch Type: SPDT.
Repeatability: ±1%.
Electrical Rating: 15 A @ 120-480 VAC; 60 Hz. Resistive; 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz.
Electrical Connections: 3 screw type; common; normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw type with enclosed scale.
Weight: 3 lb 3 oz (1.50 kg).
Agency Approvals: CSA; FM; UL.
