1626-5 | Single and dual pressure switch | range .5-6.0" w.c. | .15 min. deadband | .35 max. deadband | 1.2 adj. diff. between set points. | Dwyer

Single and dual pressure switch, range .5-6.0" w.c., .15 min. deadband, .35 max. deadband, 1.2 adj. diff. between set points.

Brand: DwyerSKU: 1626-5

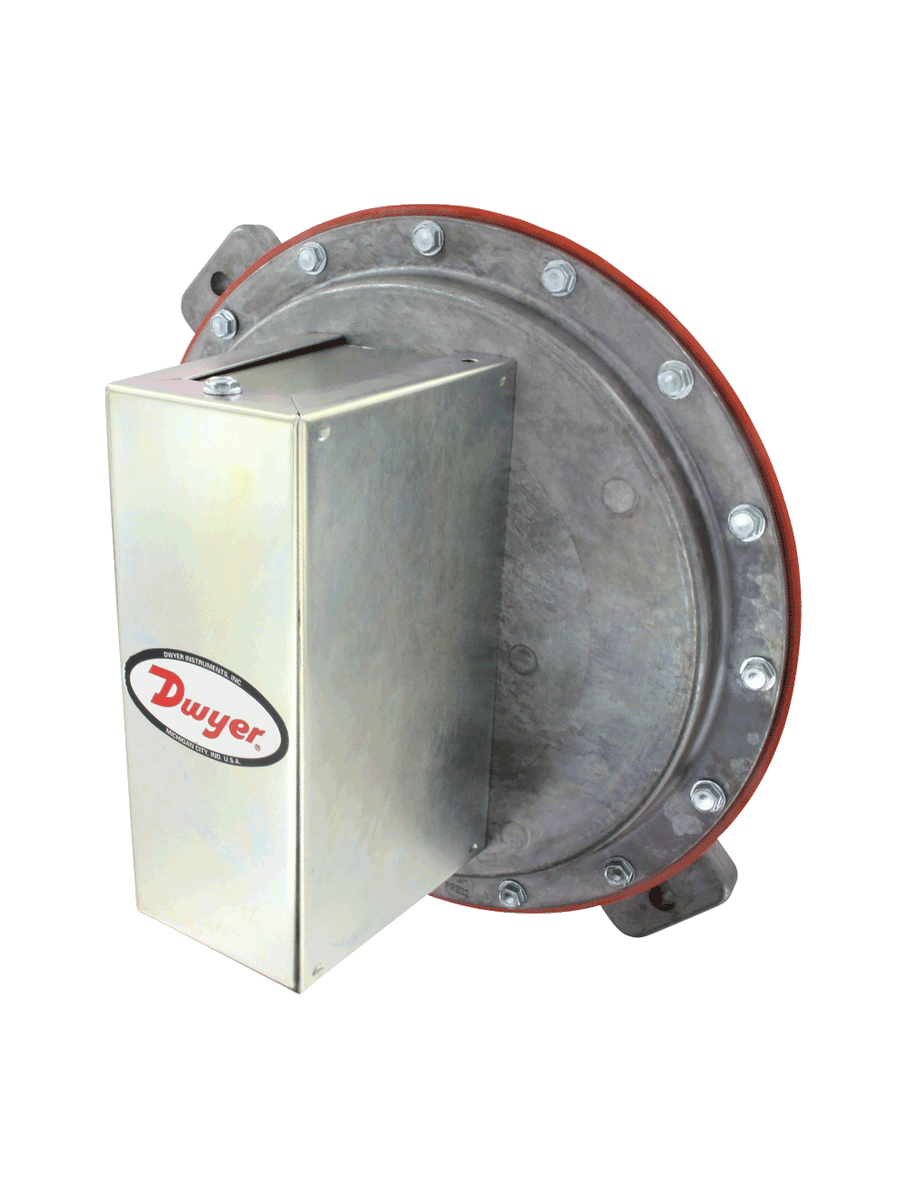

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1626-5

Jump to: Overview & Specifications Reviews

Overview Details for 1626-5

See catalog product page for full listing

Single and dual pressure switch | range .5-6.0" w.c. | .15 min. deadband | .35 max. deadband | 1.2 adj. diff. between set points.

Series 1620 Single and Dual Pressure Switch

High Reliability, Repetitive Accuracy within ±1%

On the Series 1620 Single and Dual Pressure Switch, our old faithful switch design is still best where highest precision combined with diaphragm sealed leak proof construction and mounting simplicity are required. Model 1626 and 1627 differential pressure switches are identical in design and construction except that Model 1626 has a single electric switch and Model 1627 has dual electric switches. Model 1627 can therefore provide dual control when required. It can be set to open or close two independent electrical circuits, each preset for its own actuation pressure. Both units have diaphragm sealed motion take outs providing maximum protection against leakage.

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Product Applications

Damper positioning
Duct air control

Single or dual action switches support consistent designs with similar models, but with the ability to match specific application needs
Sealed diaphragm provides leak-proof construction for high accuracy and precision control

Specifications

Series: 1620 Single and Dual Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: 1620 Single and Dual Pressure Switch
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -30 to 130°F (-34.4 to 54.4°C).
Pressure Limits: Max. 50 in. w.c. (12.44 kPa) continuous; 2 psig (13.79 kPa) surge.
Switch Type: 1626: SPDT; 1627: (2) SPDT.
Repeatability: ±1%.
Electrical Rating: 15 A @ 120 to 480 VAC; 60 Hz. Resistive; 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz.
Electrical Connections: 3 screw type; common; normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw adjustment.
Weight: Model 1626: 3 lb 9.8 oz (1.64 kg); Model 1627: 3 lb 11.8 oz (1.69 kg).
Agency Approvals: CE.
