160S-24PM | Permanent mount "S" type stainless steel Pitot tube | 24" insertion length. | Dwyer
Permanent mount "S" type stainless steel Pitot tube, 24" insertion length.
Documents and manuals
Dwyer 160S-24PM Documents
Overview
Details for 160S-24PM
Permanent mount "S" type stainless steel Pitot tube | 24" insertion length.
Series 160S "S" Type Stainless Steel Pitot Tube

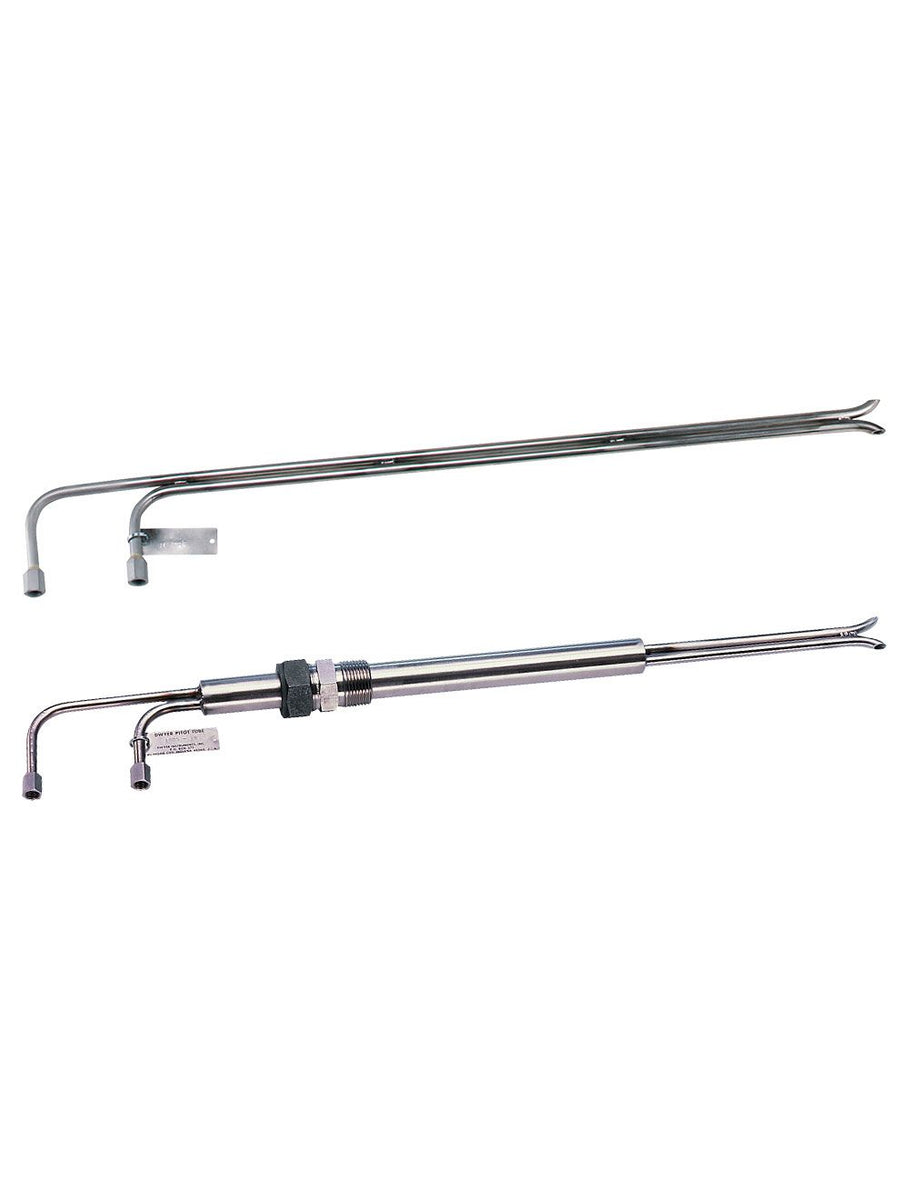

The Series 160S "S" Type Stainless Steel Pitot Tube is designed specifically for flow measurement of dirty, particulate laden air or gas streams typical in smoke stack and other environmental testing. Total and static pressure tubes are precisely aligned and welded together every 6 inches for maximum accuracy, strength, and long term durability. Permanent mount (PM) models include a 1" welded stainless steel sleeve and adjustable compression fitting with 1" MNPT mounting threads.
Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.
Product Applications
- Monitor or control air velocity or air flow in particulate laden air streams
- Large 5/16" stainless steel tubing resists plugging under harsh conditions
- 1/8" FNPT connections are permanently welded to unit
- Able to be used in up to 1500°F (815.5°C) and 100 psig (6.89 bar)
Specifications
- Series
- 160S "S" Type Stainless Steel Pitot Tube
- Category/Type
- Air Quality
- Type
- Pitot Tubes
- Series
- 160S "S" Type Stainless Steel Pitot Tube
