126-021 | Aluminum flange adapter ring | 24"2;. | Dwyer
Aluminum flange adapter ring, 24'.

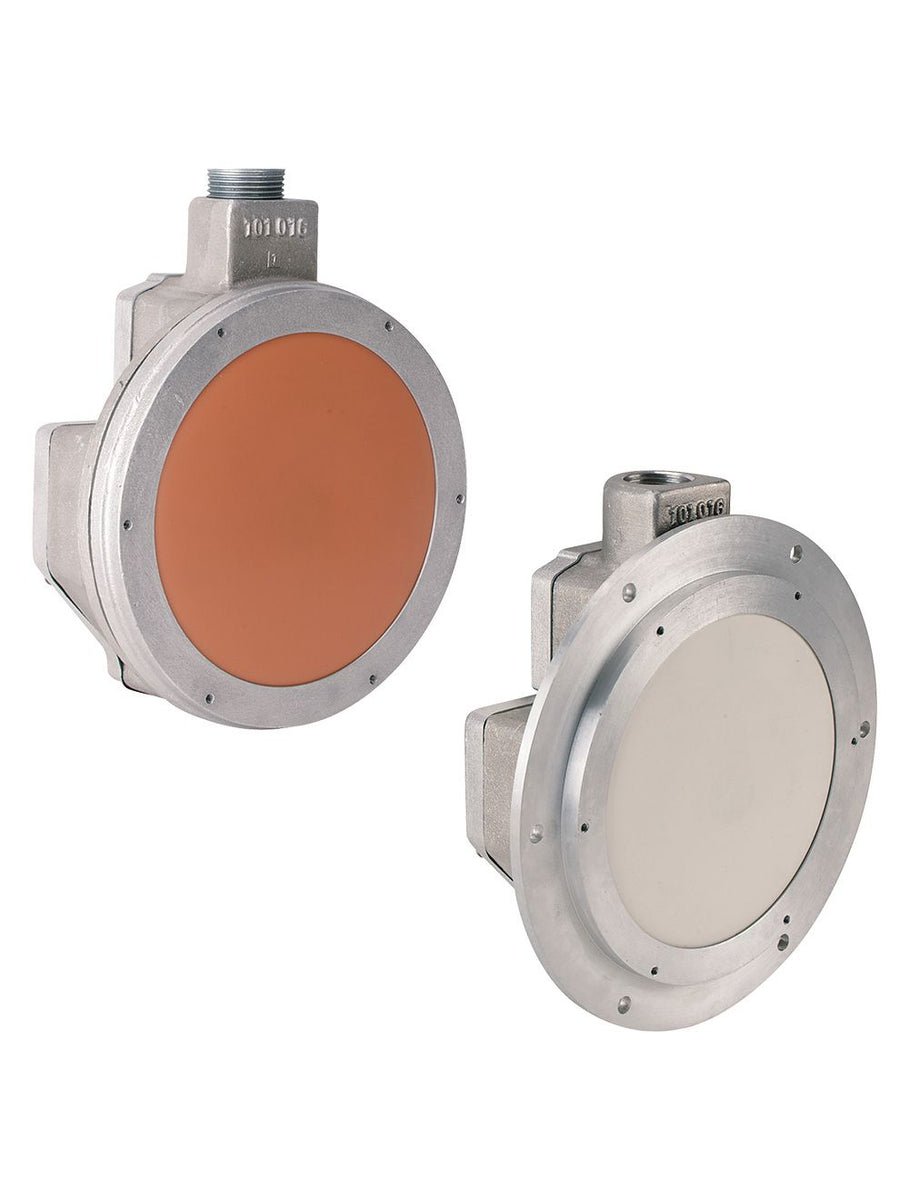

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 126-021
Documents and manuals
Dwyer 126-021 Documents
Overview
Details for 126-021
See catalog product page for full listing
Aluminum flange adapter ring | 24'.
Ultra-Mag™ Explosion-proof Level Switch
For Powder & Bulk Solids
- Uses a unique magnetic linkage which isolates the electrical compartment from controlled product, reducing maintenance and improving sensitivity
- Sealed switch compartment and sealed leads yield the exceptionally reliable operation
- A wide selection of diaphragms and switches is available with choices of flange or suspension mounting to fit a specific application
- Extremely sensitive indication and very economical
- Magnetic linkage makes this simple explosion-proof diaphragm switch the most rugged and reliable level control for a variety of products
Specifications
- Service
- Compatible powder or bulk solids.
- Wetted Materials
- Mounting Flange: See Catalog Page. Aluminum or 304 SS. Diaphragm: See Catalog Page. Urethane; Buna-N; PTFE; Silicone Rubber; Polyester; Fluoroelastomer; White Buna-N (food grade); or EPDM.
- Temperature Limits
- Depends on diaphragm material; see Catalog Page. Standard switch: -40 to 185°F (-40 to 85°C); high temperature switch: -40 to 350°F (-40 to 176°C).
- Pressure Limit
- 60 psig (4.14 bar).
- Enclosure Rating
- General purpose or weatherproof and explosion-proof. See Catalog Page.
- Switch Type
- See Catalog Page.
- Electrical Rating
- See Catalog Page.
- Electrical Connections
- 18 gage solid core; 600 volt TEW 105°C; style 1015. Epoxy sealed at conduit entrance. 12" (304.8 mm) long.
- Conduit Connection
- 1/2" female NPT.
- Process Connection
- For flanged models standard is 8-3/8" (212.725 mm) diameter bolt hole circle.
- Mounting Orientation
- Flange mount or suspend depending on model.
- Set Point Adjustment
- Internal screw.
- Options
- Suspension kits and flange adaptor rings.
- Weight
- 7 lb (3.18 kg).
- Agency Approvals
- UL.
