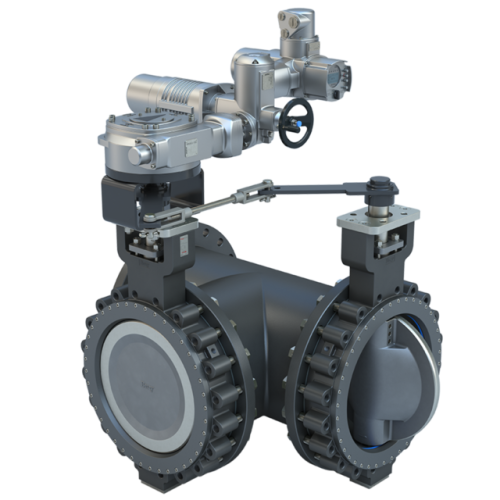

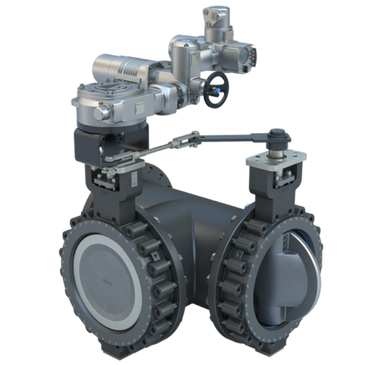

MKL3-9200/AU-4068SV | 20" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 6500 | 120 VAC | Modulating | 40680 lb-in | NEMA 4 | Bray

Brand: BraySKU: MKL3-9200/AU-4068SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL3-9200/AU-4068SV

Product: MKL3-9200/AU-4068SV
Valve Size: 20"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.O. Branch/Slave N.C. Left (9)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 6500
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel;Torque Switches
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: NEMA 4X;NEMA 6P
Close Off Pressure: 250
Weight: 2336
