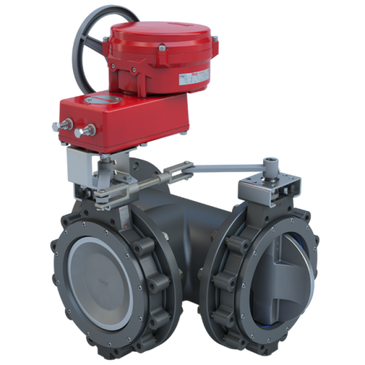

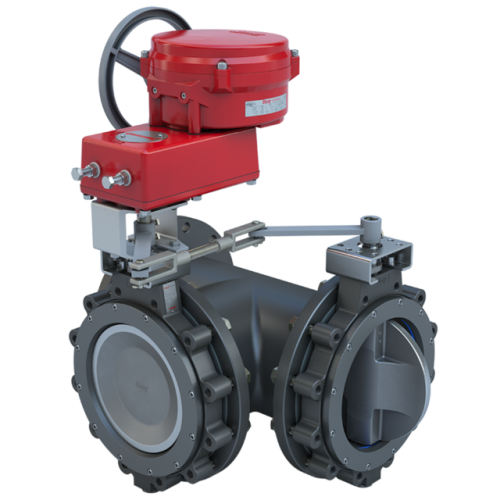

MKL3-8140/70-1300SV | 14" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 2900 | 120 VAC | modulating | 13000 lb-in | NEMA 4 | Bray

Brand: BraySKU: MKL3-8140/70-1300SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL3-8140/70-1300SV

Product: MKL3-8140/70-1300SV
Valve Size: 14"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.O. Left/Slave N.C. Branch (8)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 2900
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 250
Weight: 1060
