Documents: MKL3-8080/70-24-0201H-BBU
MKL3-8080/70-24-0201H-BBU | 8" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 2800 | 24 VAC/30VDC | Two position | 2000 lb-in | NEMA 4 | Heater | & Battery Backup unit | Bray
8 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 2800 | | 24 VAC/30VDC | Two position | 2000 lb-in | NEMA 4 | Heater | & Battery Backup unit

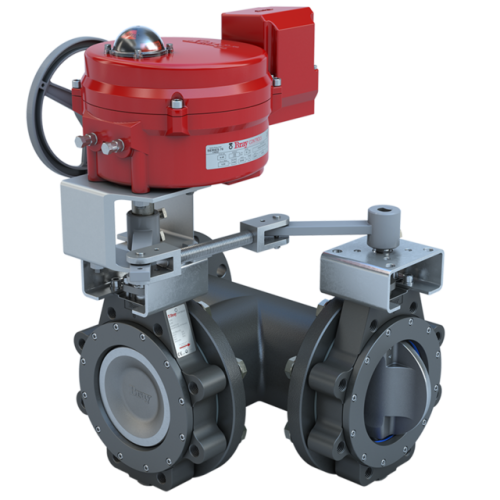

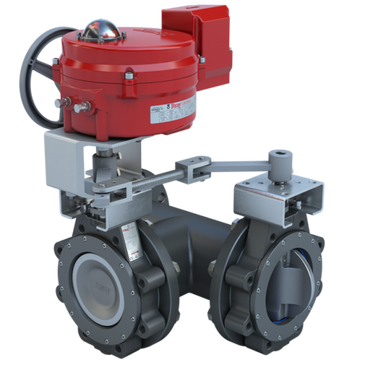

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-8080/70-24-0201H-BBU
Overview Details for MKL3-8080/70-24-0201H-BBU
Specifications
- Product
- MKL3-8080/70-24-0201H-BBU
- Valve Size
- 8"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.O. Left/Slave N.C. Branch (8)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 2800
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- On/Off
- Actuator Action
- Fail Safe
- Fail Position
- Fail Open Left to Right
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Battery Back-Up Failsafe;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/30 VDC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 250
- Weight
- 306.7
