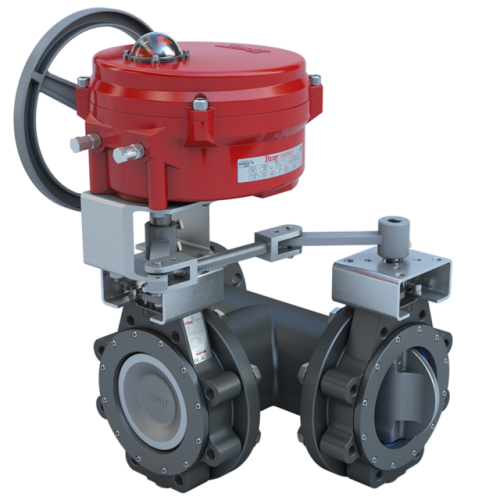

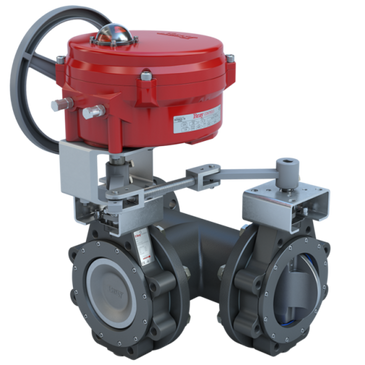

MKL3-7100/70-24-0501SVH | 10" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 1630 | 24 VAC/DC | modulating | 5000 lb-in | NEMA 4 | Heater | Bray

The Bray MKL3-7100/70-24-0501SVH is a robust and reliable 10-inch, 3-way lugged butterfly valve engineered for demanding applications in HVAC and industrial process control systems. Its durable construction, featuring an ANSI Class 150 carbon steel body and a high-performance design, ensures exceptional longevity and precise flow regulation. This valve excels in demanding environments, offering a high Cv of 1630 for efficient flow control even under significant pressure. The integrated modulating 24 VAC/DC actuator provides smooth, responsive operation, while the NEMA 4 rating guarantees protection against harsh environmental conditions. Additional features, including auxiliary switches, an enclosed terminal strip, a manual override handwheel, and a heater, enhance operational flexibility and convenience. The valve's bi-directional flow capability (with uni-directional option using a seat retainer upstream) and fail-last position ensure reliable operation.

Benefits:

• Precise and responsive flow control for optimal system performance.
• Durable construction for extended service life in demanding environments.
• Enhanced efficiency through optimized flow regulation.
• Easy maintenance and operation due to user-friendly design and features.
• Robust protection against environmental factors due to the NEMA 4 rating.
• Reliable operation ensured by fail-last functionality.

Specifications

• Valve Size: 10 inches
• Valve Type: 3-Way Lugged Butterfly Valve
• Body Material: Carbon Steel (CS)
• End Connection: ANSI Class 150 Lugged
• Cv (Flow Coefficient): 1630
• Actuator Type: Modulating
• Actuator Power Supply: 24 VAC/DC
• Actuator Features: Auxiliary Switches, Enclosed Terminal Strip, Heater, Manual Override Handwheel, 5000 lb-in torque
• Actuator Conduit Connection: 2 x 3/4" NPT
• Area Classification: IP65, IP67, NEMA 4, NEMA 4X
• Close Off Pressure: 250 psi
• Weight: 514 lbs
• Flow Direction: Bi-directional; Uni-directional (with seat retainer upstream)

Fail Position: Fail Last
