Documents: MKL3-7030/70-24-0081SV
MKL3-7030/70-24-0081SV | 3" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 123 | 24 VAC/DC | modulating | 800 lb-in | NEMA 4 | Bray
3 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 123 | | 24 VAC/DC | modulating | 800 lb-in | NEMA 4

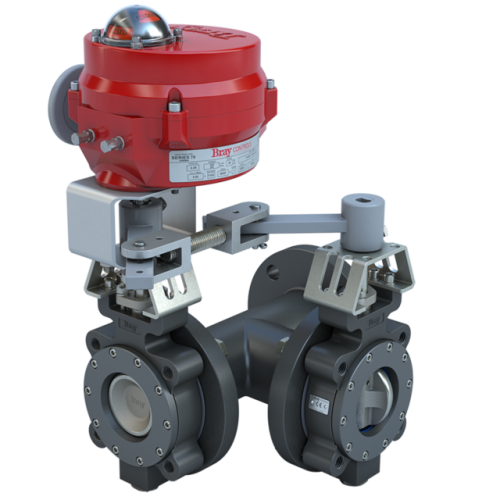

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-7030/70-24-0081SV
Overview Details for MKL3-7030/70-24-0081SV
Specifications
- Product
- MKL3-7030/70-24-0081SV
- Valve Size
- 3"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.O. Right/Slave N.C. Branch (7)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 123
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 250
- Weight
- 92
