MKL3-7030/70-0081SV | 3" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 123 | 120 VAC | modulating | 800 lb-in | NEMA 4 | Bray (OBSOLETE)

3 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 123 | | 120 VAC | modulating | 800 lb-in | NEMA 4

Brand: BraySKU: MKL3-7030/70-0081SV

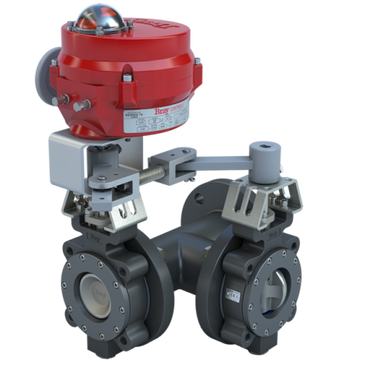

Bray | MKL3-7030/70-0081SV

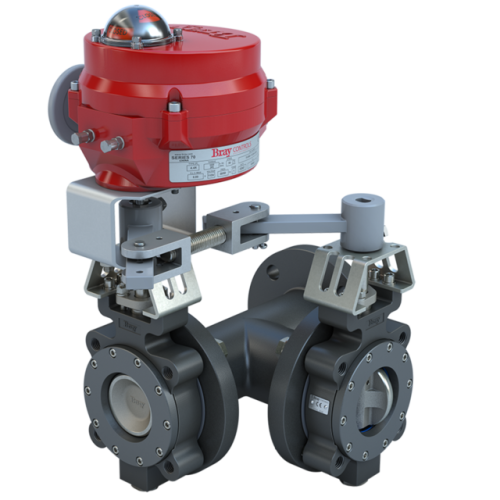

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MKL3-7030/70-0081SV

Jump to: Overview & Specifications Reviews

Overview Details for MKL3-7030/70-0081SV

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Specifications

Product: MKL3-7030/70-0081SV
Valve Size: 3"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.O. Right/Slave N.C. Branch (7)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 123
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 250
Weight: 92
