Documents: MKL3-6180/AU-4068
MKL3-6180/AU-4068 | 18" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 10500 | 120 VAC | On/Off | 40680 lb-in | NEMA 4 | Bray
18 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 10500 | | 120 VAC | On/Off | 40680 lb-in | NEMA 4

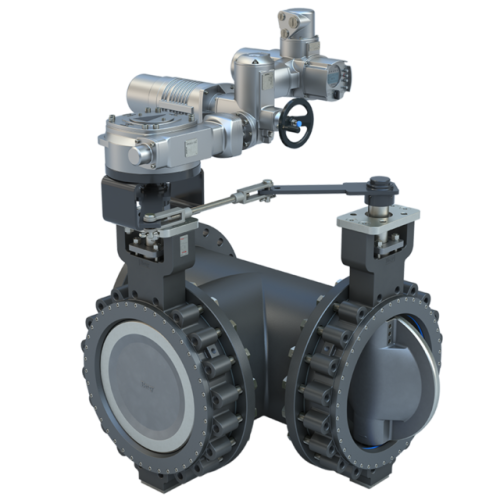

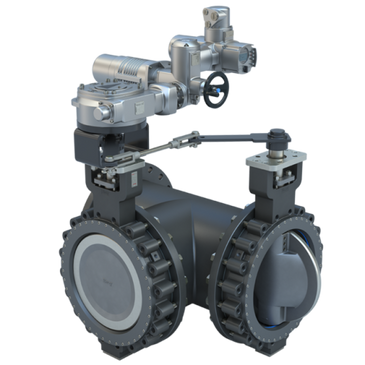

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-6180/AU-4068
Overview Details for MKL3-6180/AU-4068
Specifications
- Product
- MKL3-6180/AU-4068
- Valve Size
- 18"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.C. Right/Slave N.O. Left (6)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 10500
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel;Torque Switches
- Actuator Power Supply
- 120 VAC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- NEMA 4X;NEMA 6P
- Close Off Pressure
- 250
- Weight
- 1838
