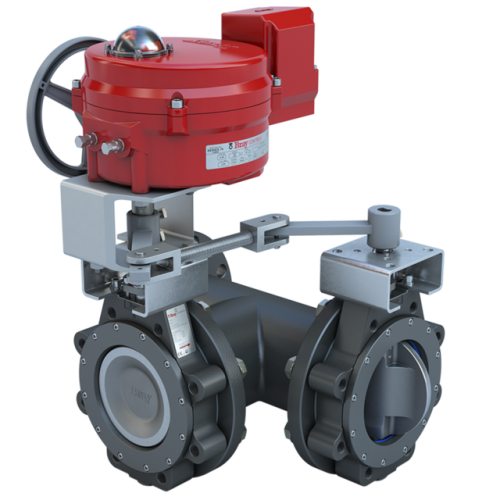

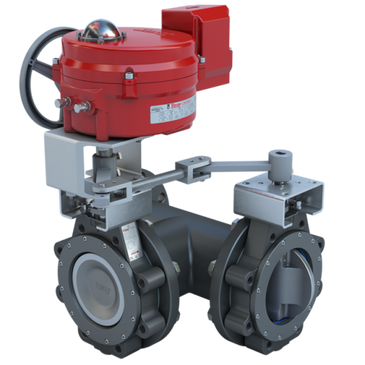

MKL3-6050/70-24-0201H-BBU | 5" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 790 | 24 VAC/30VDC | Two position | 2000 lb-in | NEMA 4 | Heater | & Battery Backup unit | Bray

Brand: BraySKU: MKL3-6050/70-24-0201H-BBU

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL3-6050/70-24-0201H-BBU

Product: MKL3-6050/70-24-0201H-BBU
Valve Size: 5"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.C. Right/Slave N.O. Left (6)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 790
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: On/Off
Actuator Action: Fail Safe
Fail Position: Fail Open Left to Branch
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Battery Back-Up Failsafe;Manual Override Handwheel
Actuator Power Supply: 24 VAC/30 VDC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 250
Weight: 186.7
