Documents: MKL3-6025/DCM24-310

More Info

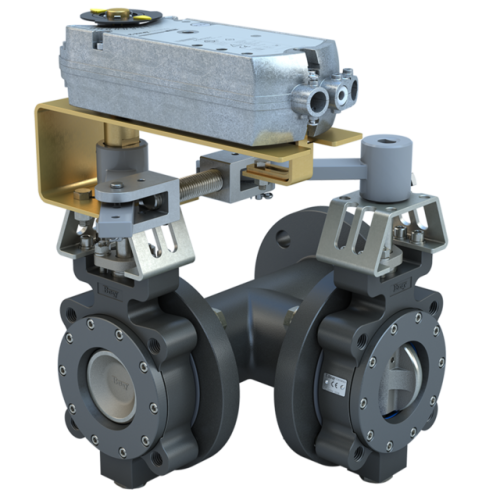

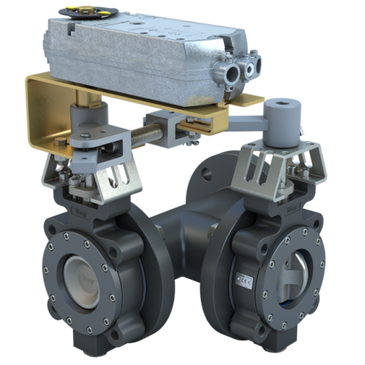

MKL3-6025/DCM24-310 | 2.5" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 78 | Damper & Valve actuator | 24 Vac | 310 lb-in | modulating | Non-Spring Return | Bray

Brand: BraySKU: MKL3-6025/DCM24-310

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MKL3-6025/DCM24-310

Jump to: Overview & Specifications Reviews

Overview Details for MKL3-6025/DCM24-310

Specifications

Product: MKL3-6025/DCM24-310
Valve Size: 2.5"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.C. Right/Slave N.O. Left (6)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 78
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non Spring Return
Fail Position: Fail Last
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: 3/8" Flex
Actuator Area Classification: IP54
Close Off Pressure: 285
Weight: 67.4
