MKL3-1025/70-24-0081SVH | 2.5" 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 78 | 24 VAC/DC | modulating | 800 lb-in | NEMA 4 | Heater | Bray
2.5 inch 3-Way Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 78 | | 24 VAC/DC | modulating | 800 lb-in | NEMA 4 | Heater

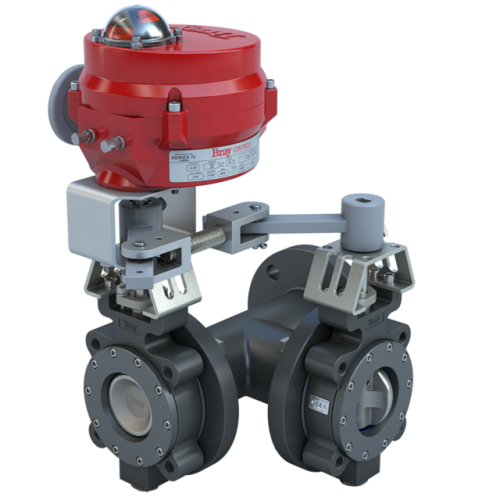

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL3-1025/70-24-0081SVH
Documents and manuals
Bray MKL3-1025/70-24-0081SVH Documents
Overview
Details for MKL3-1025/70-24-0081SVH
Specifications
- Product
- MKL3-1025/70-24-0081SVH
- Valve Size
- 2.5"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.C. Left/Slave N.O. Branch (1)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 78
- Flow Direction
- Bi-Directional | Uni-Directional (Seat Retainer Upstream)
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 250
- Weight
- 76
