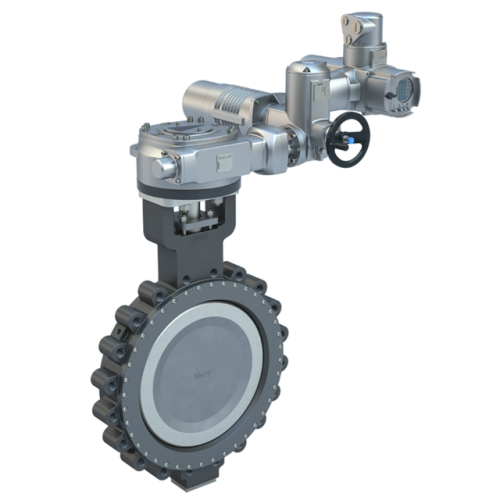

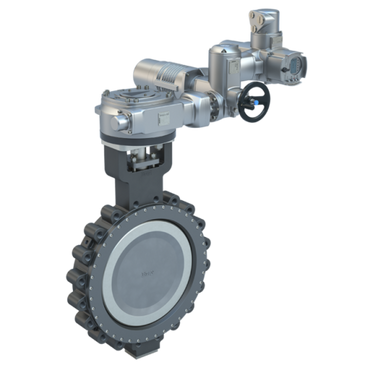

MKL2-N180/AU-2130SV | 18" Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 5100 | Normally Open | 120 VAC | Modulating | 21300 lb-in | NEMA 4 | Bray

Brand: BraySKU: MKL2-N180/AU-2130SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL2-N180/AU-2130SV

Product: MKL2-N180/AU-2130SV
Valve Size: 18"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 5100
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel;Torque Switches
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: NEMA 4X;NEMA 6P
Close Off Pressure: 250
Weight: 598
