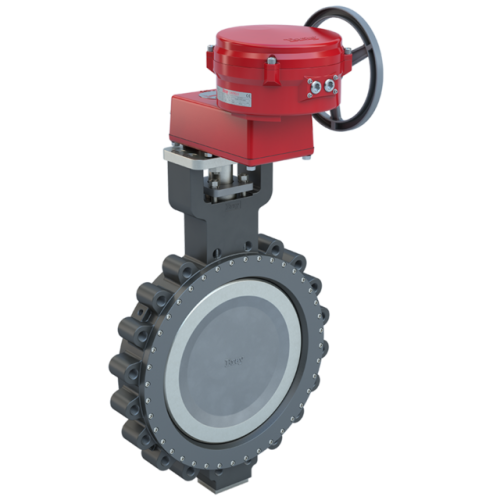

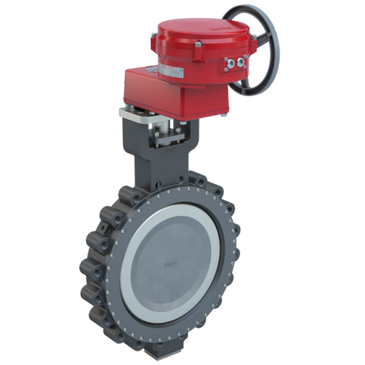

MKL2-C200/70-1800SV | 20" Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 6500 | Normally Closed | 120 VAC | modulating | 18000 lb-in | NEMA 4 | Bray

Brand: BraySKU: MKL2-C200/70-1800SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL2-C200/70-1800SV

Product: MKL2-C200/70-1800SV
Valve Size: 20"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 6500
Flow Direction: Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 200
Weight: 687
