MKL2-C183/AU-4068SV | 2 Way High Performance Butterfly Valve | Seat Retainer Downstream | 18 Inch | 120V Non Spring Return Actuator | Bray

Brand: BraySKU: MKL2-C183/AU-4068SV
Bray | MKL2-C183/AU-4068SV

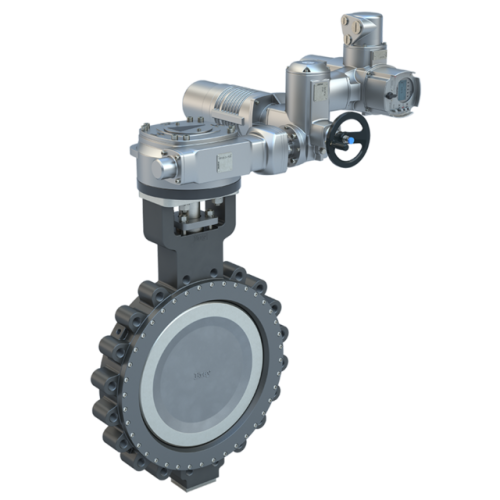

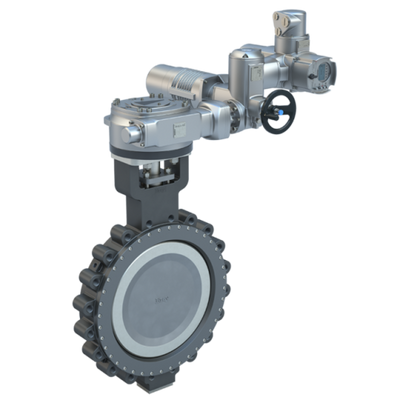

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MKL2-C183/AU-4068SV

Overview Details for MKL2-C183/AU-4068SV

2 Way High Performance Butterfly Valve | Seat Retainer Downstream | 18 Inch | 120V Non Spring Return Actuator

Description:

Bray MKL2-C183/AU-4068SV 2 Way High Performance Butterfly Valve, Seat Retainer Downstream, 18 Inch, 120V Non Spring Return Actuator.

High performance butterfly valve model MKL2-C183 features:
- Seat retainer downstream.
- 18 inch.
- 450 mm.
- 550 PSI close-off.
- 90 degree 9500 Cv.
- 60 degree 4530 Cv.
- 2-way flow.
- Normally closed.
- ANSI class 300.
- Double offset stem / disc design.
- Blow out proof stem.
- Energized RTFE seat.
- Pressure assisted, but not pressure dependent design.
- Adjustable PTFE packing.
- Dead end rating equal to nominal pressure rating.
- Carbon steel body.
- 316 stainless steel disc.
- 17-4 stainless steel stem.
- For use with hot water, chilled water, condenser water and steam.

Factory installed actuator model AU-4068SV features:
- 120 VAC.
- 4-20 mA modulating.
- AUMA plug/socket connector with screw type connection.
- Integral 12.5 W heater.
- NEMA 6P, IP 68 enclosure.
- PTC thermistors motor protection.
- Direct mounting.
- Manual declutchable override hand wheel.
- Position and motor indicator lights.
- Push button controls.

Bray’s MK Series High Performance Butterfly Valves are available in ANSI Class 150 and 300. Bray's high performance butterfly series is used in Building Automation, Temperature Controls, HVAC 2-Way and 3-Way Assemblies, Chilled Water, Hot Water, Steam, and Special Applications. The Bray/McCannalok MK Series high performance butterfly valves set the quality and design standard by which all other high performance valves are measured. The MK Series is ideally suited to high pressure, high temperature, and high cycle HVAC applications as well as mission critical HVAC applications.

Available in ANSI Class 150 ratings, both 2-way and 3-way, and ANSI Class 300 ratings in 2-way configurations, Bray’s MK Series valves are provided with a wide variety of direct mount Bray electric and pneumatic actuators and accessories. All valves are tested for bubble-tight closeoff to API 598 standards at maximum rated differential pressure.

Bray AU Series Electric actuators provide precise, durable control of quarter turn valves including resilient seated butterfly valves, high performance butterfly valves and industrial ball valves. The compact industrial housing is rated to NEMA 6P, IP 68 standards for outdoor use. All models include integrated controls and a manual override handwheel. The standard AU models are 120V single phase. Three phase units are available as an option. All AU Series actuators include two auxiliary switches, torque switches, a position indicator and a heater. Modulating units provide position feedback as standard. AU series actuators mount directly to Bray butterfly valves and ball valves without the need for adapter bracket. Thermal overload protection is provided by means of PTC thermistors connected directly to the motor windings.

There is no better choice for building automation!
  • Actuator Power:120V
  • Flow:2 Way
  • Return Position:Non-Spring Return
  • Valve Size (In.):18


Specifications

Product
MKL2-C183/AU-4068SV
Valve Size
18"
2-Way / 3-Way
2-Way
Valve Product Type
Butterfly Valve
Valve Position
Normally Closed
Valve End Connection
ANSI Class 300 Lugged
Assembly Cv
4530
Flow Direction
Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal
Modulating
Actuator Action
Non-Fail Safe
Fail Position
Fail Last
Actuator Features
Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel;Torque Switches
Actuator Power Supply
120 VAC
Actuator Conduit Connection
2 x 3/4" NPT
Actuator Area Classification
NEMA 4X;NEMA 6P
Close Off Pressure
550.74
Weight
953
