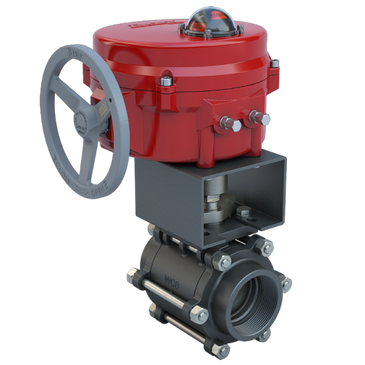

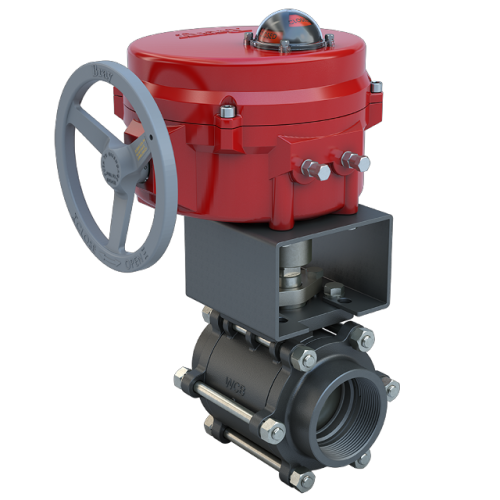

BV4-CS3-159/70-E301 | 4" | 3 piece design threaded ball valve | CS | CV 196.35 | Normally Open | 120 VAC | Two position | 3000 lb-in | NEMA 4 | Bray

Brand: BraySKU: BV4-CS3-159/70-E301

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV4-CS3-159/70-E301

Product: BV4-CS3-159/70-E301
Valve Size: 4"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 196.35
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 94.7
