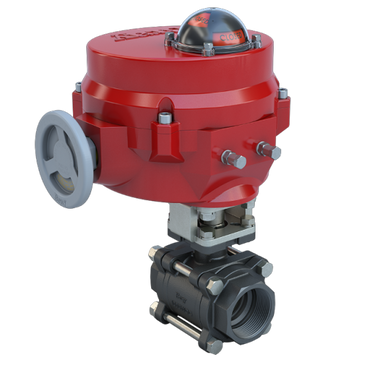

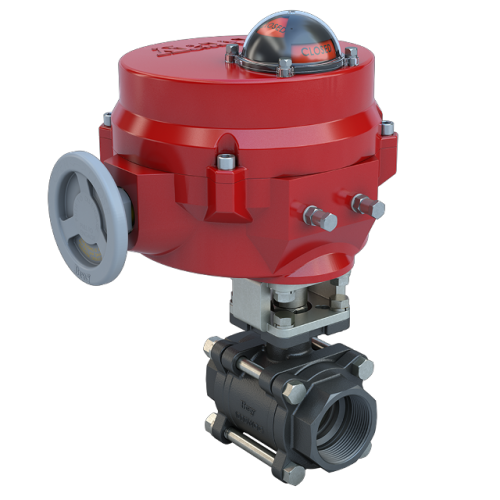

BV2-CS3-29/70-24-0081H | 2" | 3 piece design threaded ball valve | CS | CV 34.69 | Normally Open | 24 VAC/DC | Two position | 800 lb-in | NEMA 4 | Heater | Bray

Brand: BraySKU: BV2-CS3-29/70-24-0081H

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV2-CS3-29/70-24-0081H

Product: BV2-CS3-29/70-24-0081H
Valve Size: 2"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 34.69
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 31.4
