BV125-CS3-200/D24-280 | 2 Way Ball Valve | 1-1/4 Inch | 24 VAC / VDC Non-Spring Return Actuator | Bray

Brand: BraySKU: BV125-CS3-200/D24-280
Bray | BV125-CS3-200/D24-280

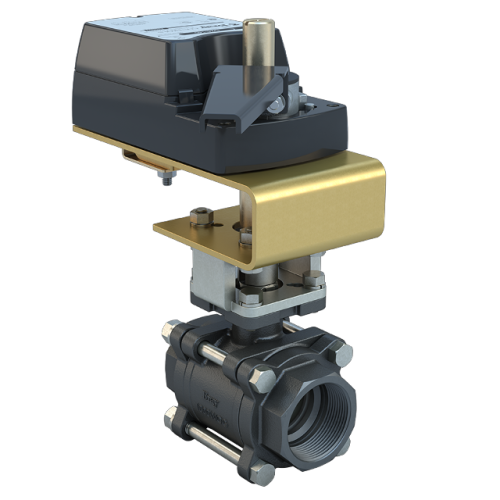

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV125-CS3-200/D24-280

Overview Details for BV125-CS3-200/D24-280

2 Way Ball Valve | 1-1/4 Inch | 24 VAC / VDC Non-Spring Return Actuator

Description:

Bray BV125-CS3-200/D24-280 2 Way Ball Valve, 1-1/4 Inch, 24 VAC / VDC Non-Spring Return Actuator.

BV Series threaded industrial control ball valve model BV125-CS3-200 features:
- 1-1/4 inch.
- 32 mm.
- Full port ball valve.
- 200 Cv
- 172.4 Kv
- 2-way flow.
- 300 PSI close-off water / 100 PSI steam.
- Threaded NPT.
- WCB carbon steel body.
- Stainless steel ball and stem.

Factory installed actuator model D24-280 features:
- Non-spring return.
- 24 VAC or 24 VDC.
- On/Off.
- Auto shutoff feature to prevent excessive wear or drive time on the motor.
- Enclosed terminal strip.
- 1/2 inch NPT conduit.
- External push button manual override.
- Standard NEMA 2, IP42 enclosure.
- Optional auxiliary switch available.
- Optional weather shield available.

The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC
control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.


  • Actuator Power:24V
  • Flow:2 Way
  • Return Position:Non-Spring Return
  • Valve Size (In.):1.25


Specifications

Product
BV125-CS3-200/D24-280
Valve Size
1-1/4"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
NPT Threaded
Assembly Cv
200
Actuator Control Signal
On/Off;Floating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
1/2" NPT
Actuator Area Classification
IP42;NEMA 2
Close Off Pressure
300
Weight
12.8
