BV05-CS3-04/DM24-70 | 2 Way Ball Valve | 1/2 Inch | 24 VAC / VDC Non-Spring Return Actuator | Bray

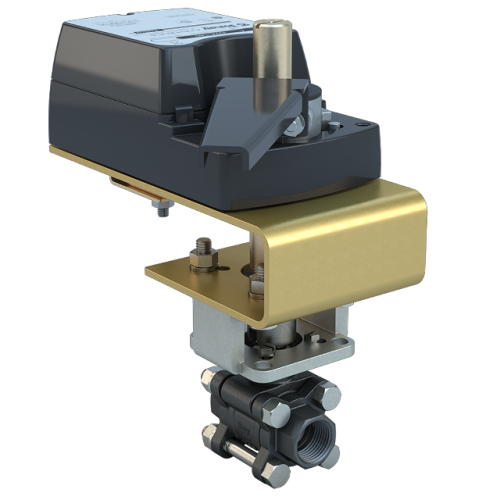

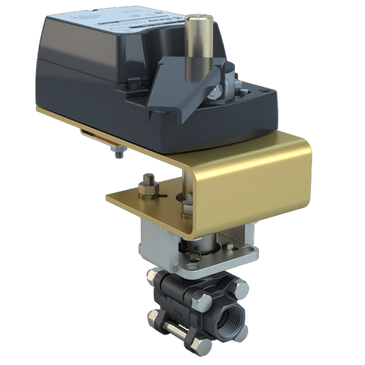

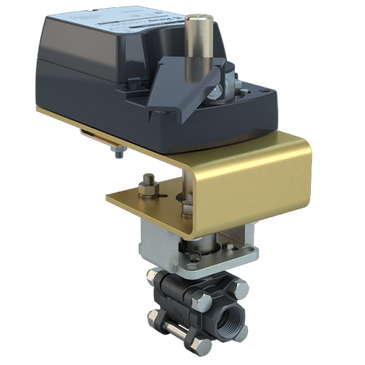

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BV05-CS3-04/DM24-70

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray BV05-CS3-04/DM24-70 Documents

Bray BV05-CS3-04/DM24-70 Catalog Bray BV05-CS3-04/DM24-70 Submittal Bray BV05-CS3-04/DM24-70 Installer's Guide Bray DM24-70 Submittal Bray DM24-70 Installer's Guide More Info

Overview

Details for BV05-CS3-04/DM24-70

2 Way Ball Valve | 1/2 Inch | 24 VAC / VDC Non-Spring Return Actuator

Description:

Bray BV05-CS3-04/DM24-70 2 Way Ball Valve, 1/2 Inch, 24 VAC / VDC Non-Spring Return Actuator.

BV Series threaded industrial control ball valve model BV05-CS3-04 features:
- 1/2 inch.
- 15 mm.

- 15 degree V-cut port.
- 3.6 Cv
- 3.1 Kv
- 2-way flow.

- 300 PSI close-off water / 100 PSI steam.

- Threaded NPT.

- WCB carbon steel body.

- Stainless steel ball and stem.

Factory installed actuator model DM24-70 features:
- Non-spring return.
- 24 VAC or 24 VDC.
- Modulating with feedback.

- 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA

- Enclosed terminal strip.

- 1/2 inch NPT conduit.

- External push button manual override.

- Standard NEMA 2, IP42 enclosure.

- Optional auxiliary switch available.

The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC

control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.

Actuator Power:24V
Flow:2 Way
Return Position:Non-Spring Return
Valve Size (In.):0.5
