Documents: 3LSE-05L37/DC24-310-T-D-WS
3LSE-05L37/DC24-310-T-D-WS | 5" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | SS Disc | CV 1218 | 24 Vac | 310 lb-in | floating | Non-Spring Return | Dual | Time out | Bray
5 inch 3-Way Lugged Butterfly Valve Resilient Seated | ANSI Class 125/150 | DI body | SS Disc | CV 1218 | | Damper & Valve actuator | 24 Vac | 310 lb-in | floating | Non-Spring Return | Dual | Time out | Weather Shield for Tandem DC-310 Actuators

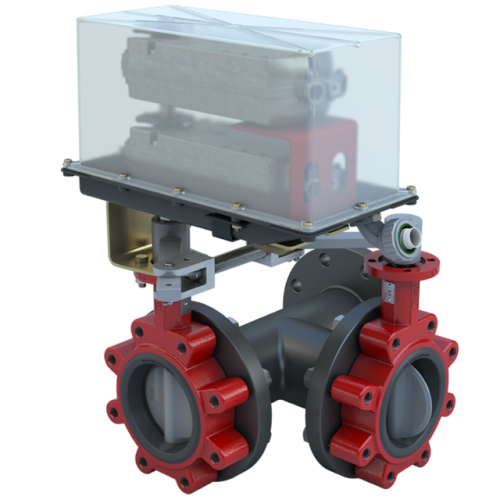

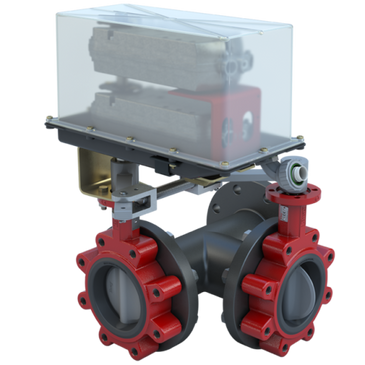

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3LSE-05L37/DC24-310-T-D-WS
Overview Details for 3LSE-05L37/DC24-310-T-D-WS
Specifications
- Product
- 3LSE-05L37/DC24-310-T-D-WS
- Valve Size
- 5"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.O. Right/Slave N.C. Branch (7)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 1218
- Actuator Control Signal
- Floating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Features
- Dual Mounted
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- 3/8" Flex
- Actuator Area Classification
- IP54
- Close Off Pressure
- 50
- Weight
- 144
