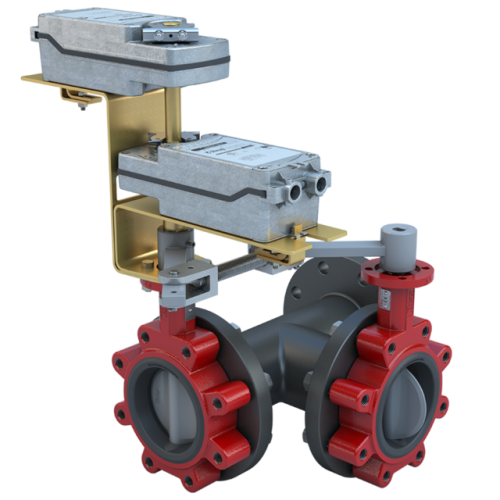

3LSE-05L34/DMS24-180-A-D | 5" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | SS Disc | CV 470 | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Dual | Bray

Brand: BraySKU: 3LSE-05L34/DMS24-180-A-D

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3LSE-05L34/DMS24-180-A-D

Product: 3LSE-05L34/DMS24-180-A-D
Valve Size: 5"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.C. Branch/Slave N.O. Left (4)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 470
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Open Left to Right
Actuator Features: Auxiliary Switches;Dual Mounted
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 50
Weight: 143.8
