112119 | 1-1/4" Inline Air Separator | Bell & Gossett

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 112119

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 112119 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 112119

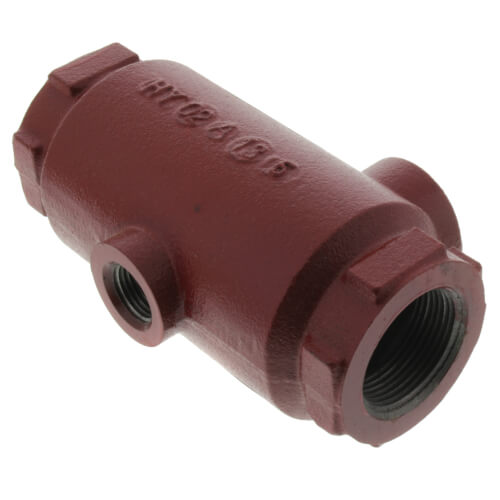

1-1/4" Inline Air Separator

The B&G In-Line Air Separator is specifically designed to efficiently separate air from circulating water in hydronic heating and cooling systems to assure quiet operation.
Operating Data
Maximum working pressure 175 psig (1,207 kPa)
Maximum operating temperature 300+ F (149+ C)
Construction
One piece cast iron
Sizes - 1" through 3"
Body Type: Cast Iron
Connection Type: Threaded

Specifications

Item Number	112119
Brand	Bell & Gossett
Application	Heating
Connection Method	Threaded
Connection Type	FNPT x FNPT
Material	Cast Iron
Max Pressure (PSI)	175
Max Temp (F)	300°F
Product Type	Air Eliminator
Size	1-1/4"
Type	Air Eliminators
