112108 | 2" NPT Enhanced Air Separator | Bell & Gossett

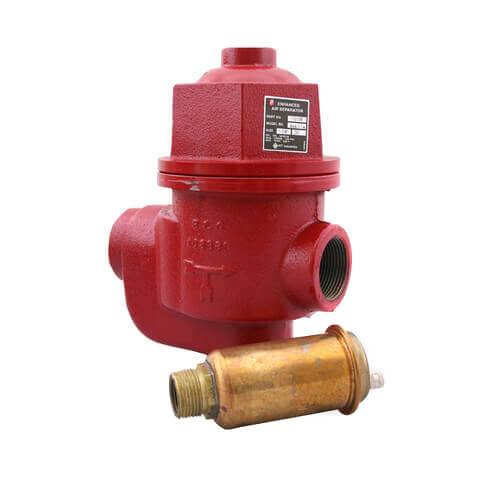

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 112108
Documents and manuals
Bell & Gossett 112108 Documents
Overview
Details for 112108
2" NPT Enhanced Air Separator
See how Enhanced Air Separator works: as system fluid enters through the inlet, (either straight or angle) the diffuser distributes flow evenly across the stainless steel, wire brush-like medium. Air bubbles, even micro air bubbles, stick to the brush filaments. Trapped air rises above the diffuser through a baffle where the air is then released through an opening at the top. De-aerated water then goes back into the system.EAS is very easy and convenient to install:
-Requires no minimum pipe run.
-Straight or angle pattern installation capability.
-Usable for systems with either steel compression or diaphragm expansion tanks.
-Removable and replaceable +" high capacity vent.
EAS is built to last:
-Rugged two-piece cast iron body and cap construction.
-Internal parts are all stainless steel.
-Vent has a brass body and non-ferrous internals.
Body Type: Cast Iron
Connection Type: Threaded
Specifications
Item Number | 112108 |
Brand | Bell & Gossett |
Application | Heating |
Connection Method | Threaded |
Connection Type | FNPT x FNPT |
Material | Cast Iron |
Max Pressure (PSI) | 150 |
Max Temp (F) | 250°F |
Product Type | Air Eliminator |
Size | 2" |
Type | Air Eliminators |
Type | Air Separator |
