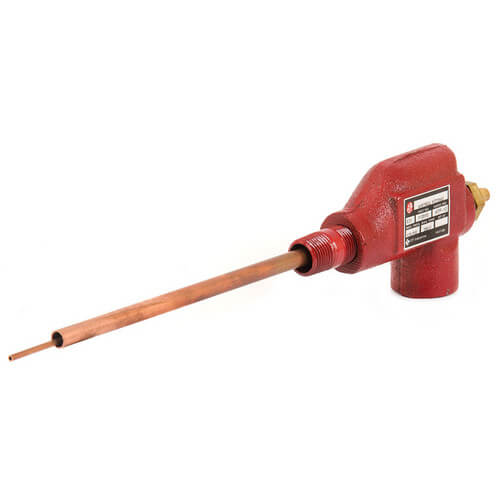

112010 | 1/2" ATF-12 Airtrol Fitting (For 12"-14" Compression Tank Dia) | Bell & Gossett

Brand: Bell & GossettSKU: 112010

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 112010

Jump to: Overview & Specifications Reviews

Overview Details for 112010

1/2" ATF-12 Airtrol Fitting (For 12"-14" Compression Tank Dia)

Airtrol Tank Fittings help establish the proper initial liquid level in the compression tank when filling the hydronic system. They help maintain proper system pressurization by directing released air to the compression tank during system operation and permit cooler liquid flow to the boiler during the off cycle as system liquid cools. Airtrol Tank Fittings must be used with the appropriately sized In-Line Airtrol or Rolairtrol air separator. Tank Connection is 1/2" Male, Boiler Connection is 3/4" Female.

Construction:

Body Type: Cast Iron
Connection Type: Threaded
Tubes: Copper and Copper Plated
Vent Tube Fitting: Brass
Ball Check: ATFL (only), Stainless Steel

Performance Characteristics:

All Tank Fittings Max Pressure :175 psig (1206 kPa)
ATFL Drain-O-Tank Valve Max Pressure: 125 psig (862 kPa)
Max Operating Temperature - All Fittings: 250+F (121+C)

Specifications

Item Number	112010
Brand	Bell & Gossett
Application	Heating
Compression Tank Diameter	12" to 14"
Connection Method	Threaded
Connection Type	FNPT x FNPT
Material	Cast Iron
Max Compression Tank Diameter	14"
Max Pressure (PSI)	175
Max Temp (F)	250°F
Product Type	Airtrol Fitting
Size	1/2"
Type	Air Eliminators
