110764 | 3/4" 790-120, 2,440,000 BTU Safety Relief Valve | Bell & Gossett (OBSOLETE)

Brand: Bell & GossettSKU: 110764

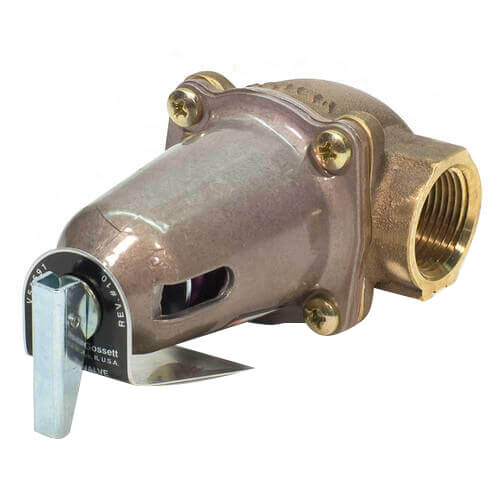

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 110764

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

3/4" 790-120, 2,440,000 BTU Safety Relief Valve

Features:

Installed in systems to discharge water should excessive pressure develop
Features an extra large relief diaphragm to assure positive action
ASME Safety Relief Valves
Protect fired and unfired hot water vessels against hazardous operating pressures.
Engineered in accordance with Section IV of the ASME boiler and pressure code for heating boilers with capacities certified by the National Board of Boiler and Pressure Vessel Inspectors.
Offer the highest BTUH ratings available on the market today for valves in their class (790,000 to 5,999,000 BTUH)
EPDM diaphragm operated (cast iron models) and diaphragm assisted (bronze models) have an effective area approximately 5 times greater than conventional "pop-type" relief valves to help overcome the effects of fouling.
Low differential between opening and closing pressures helps to prevent conditions under which system water might flash to steam and cause hammering
Model 790 and 1170 Operating Data & Construction
Maximum working pressure 125 PSIG (8.6 bar)
