110130 | 1" 1170-36, 1,330,000 BTU Safety Relief Valve | Bell & Gossett

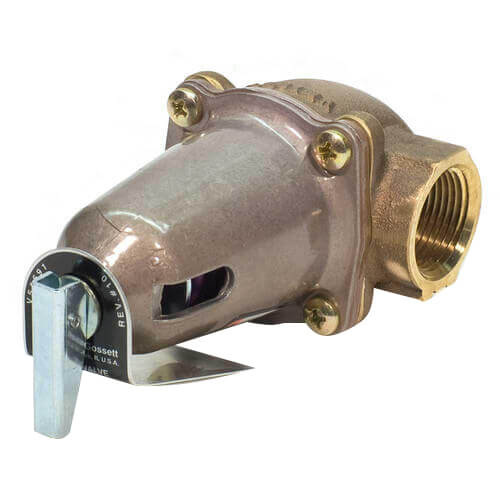

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 110130
Documents and manuals
Bell & Gossett 110130 Documents
Overview
Details for 110130
1" 1170-36, 1,330,000 BTU Safety Relief Valve
Bell & Gossett model 1170-36 bronze hot water relief valve in an angle pattern with a 1" inlet and a 1" outlet. This valve can be set at 36 psi and has a 1,330,000 BTU capacity. Cast iron or bronze safety relief valves are designed for fired and unfired hot water pressure vessels to protect against overpressure conditions. Cast iron models are used for hot water heating boilers and bronze models can be used on direct fired water heaters, or storage tanks with indirect heaters to match the BTU loads of the heat exchangers. Their maximum pressure is 125 psi and their maximum temperature is 250°F.Specifications
Item Number | 110130 |
Brand | Bell & Gossett |
Application | Heating |
ASME | Yes |
Capacity (BTU) | 1330000 |
Connection Type | Threaded |
Material | Bronze |
Max Pressure (PSI) | 125 |
Max Pressure (PSIG) | 125 |
Max. Working Pressure | 125 PSIG |
Pressure Set Point | 36 psi |
Size | 1" |
SubType | Pressure Release Valve |
Temperature Range (F) | 250°F Max |
Type | Relief Valve |
