110125 | 790-75, 1,615,000 BTU Capacity Relief Valve | Bell & Gossett

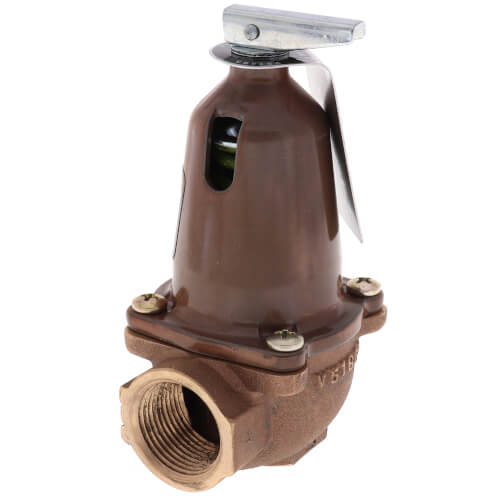

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 110125
Overview Details for 110125
790-75, 1,615,000 BTU Capacity Relief Valve
ASME Safety Relief ValvesProtect fired and unfired hot water vessels against hazardous operating pressures.
Engineered in accordance with Section IV of the ASME boiler and pressure code for heating boilers with capacities certified by the National Board of Boiler and Pressure Vessel Inspectors.
Offer the highest BTUH ratings available on the market today for valves in their class (790,000 to 5,999,000 BTUH)
EPDM diaphragm operated (cast iron models) and diaphragm assisted (bronze models) have an effective area approximately 5 times greater than conventional "pop-type" relief valves to help overcome the effects of fouling.
Low differential between opening and closing pressures helps to prevent conditions under which system water might flash to steam and cause hammering
Model 790 and 1170 Operating Data & Construction
Maximum working pressure 125 PSIG (8.6 bar)
Maximum Operating Temperature 250 F (121 C)
Body: Brass
Diaphragm & Seat: EPDM
Internal Wetted Parts: Brass
Specifications
Item Number | 110125 |
Brand | Bell & Gossett |
Application | Heating |
ASME | Yes |
Capacity | 1615000 BTU/hr |
Connection Type | Threaded |
Material | Bronze |
Max Pressure (PSIG) | 125 |
Max. Working Pressure | 125 PSIG |
Pressure Set Point | 75 psi |
Size | 3/4" |
SubType | Pressure Release Valve |
Temperature Range (F) | 250°F Max |
Type | Relief Valve |
