101231LF | CTF-3/4, 3/4" Threaded Check-Trol Isolation Flow Control Flange, Lead Free | Bell & Gossett
3/4" NPT Check-Trol Isolation Flange

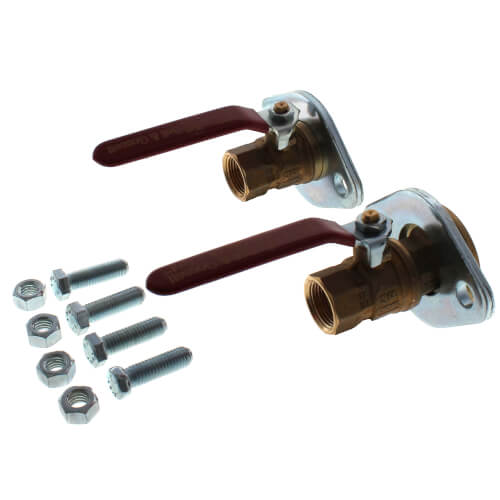

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 101231LF
Documents and manuals
Bell & Gossett 101231LF Documents
Overview
Details for 101231LF
CTF-3/4, 3/4" Threaded Check-Trol Isolation Flow Control Flange, Lead Free
**NOTE: See "Selection Guide" document for a description of pump models applicable for this Check-TrolThe Check-Trol flange is a combination isolation valve, flow control valve, and companion flange for circulators. The full port ball valve allows the circulator to be removed from the system without draining the system. The internal spring check prevents gravity circulation. Free floating companion flange makes pump installation a snap.
Another advantage of the Check-Trol is the minimal pressure drop, especially when compared to the losses that can be experienced when a check valve is installed internal to the circulator. The Check-Trol flanges are packaged with an isolation flange of the same size to create a pair. Capscrews and nuts are included.
Flow Control Valve
Prevents gravity circulation and flow in the wrong direction.
Isolation Valve
Allows for servicing or replacement of the circulator without draining the system.
Companion Flange
Free-floating companion flanges allow easy alignment for optimal handle positioning.
Specifications
Item Number | 101231LF |
Brand | Bell & Gossett |
Accessory | Flanges |
Connection Size | 3/4" |
Connection Type | Threaded |
Family | A-FLANGES |
Material | Brass |
Max Pressure (PSI) | 150 |
Max Temp (F) | 200°F |
Type | Accessory |
