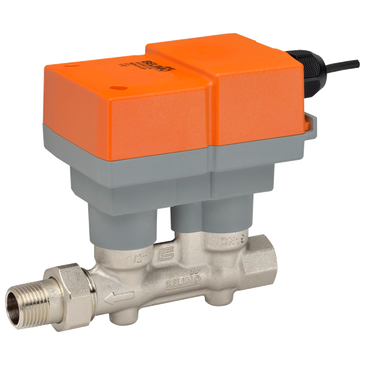

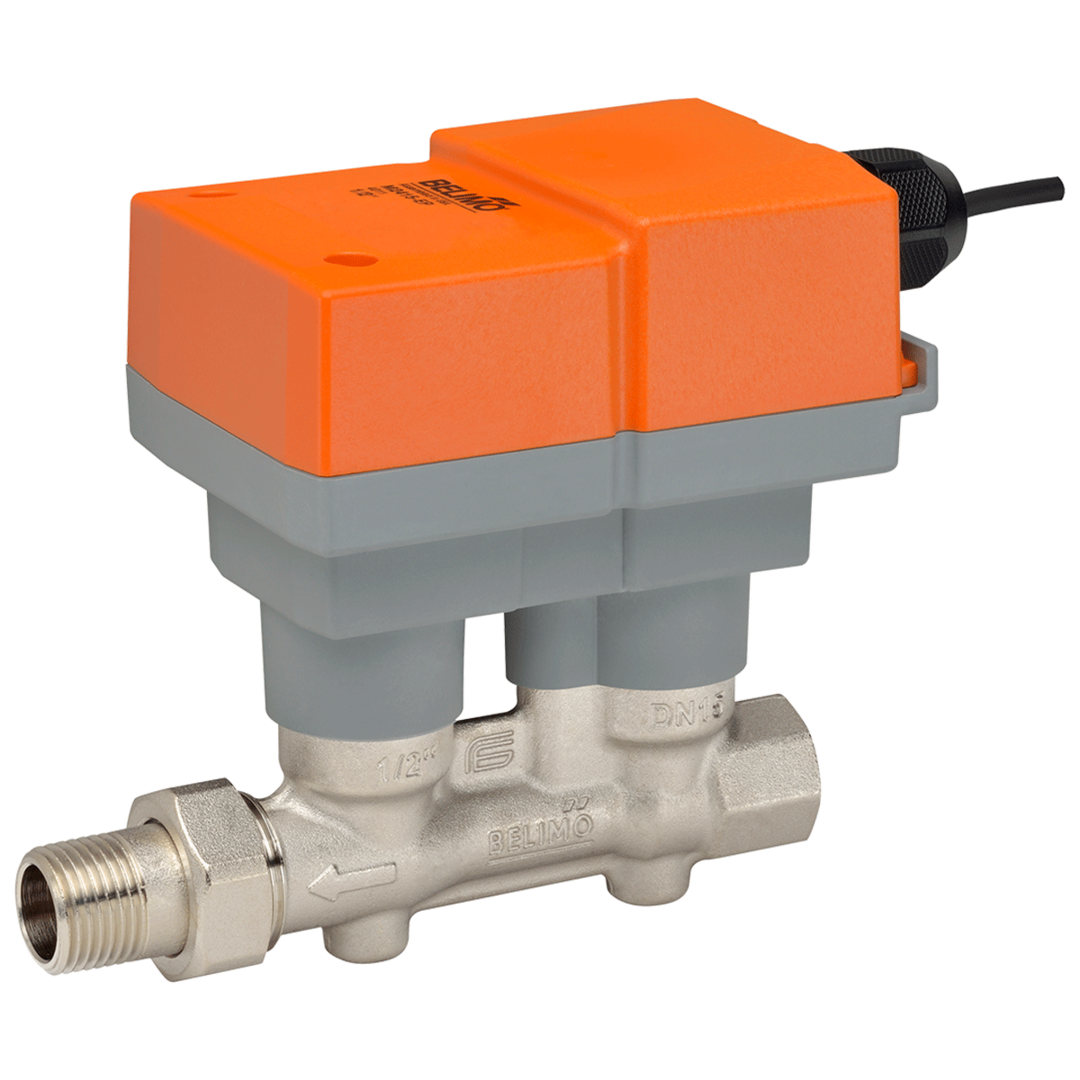

FM075 | Flow Meter NPT 3/4" | Forged Brass | Nickel Plated | 12.4 GPM | Power Supply 24V | Output signal 0 - 10VDC | Belimo (OBSOLETE)
Flow sensor 3/4", ∆p 1.89 psi, FS 12.4 GPM
Documents and manuals
Belimo FM075 Documents
Overview
Details for FM075
Flow Meter NPT 3/4" | Forged Brass | Nickel Plated | 12.4 GPM | Power Supply 24V | Output signal 0 - 10VDC
Flow Meter NPT 3/4" | Forged Brass | Nickel Plated | 12.4 GPM | Power Supply 24V | Output signal 0 - 10VDC
Application
The ultrasonic flow meters are designed for HVAC chilled water, hot water, and water/glycol solutions from -4°F to 250°F [-20°C to 120°C] up to 60% glycol.
Operation
The ultrasonic flow meter is an accurate and repeatable liquid flow measurement meter by utilizing ultrasonic transit time technology. The transducers perform as both emitter and receiver to provide accurate signal reflection.
Product Features
The flow meter incorporates an embedded temperature sensor which enables Belimo’s patented temperature and glycol compensation logic to accurately read flow over a wide range of water variables. Easy installation and compact to fit anywhere.
Specifications
- Application
- Pipe
- Cv
- 9
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water up to 60% glycol
- Measured Values
- Flow
- Output Signal
- 0...10 V
- Product Type
- Sensor
- Sensor Type
- Flow
- Voltage AC/DC
- AC/DC 24 V
