B220HT290+LF24-MFT-S US | HTCCV | 0.75" | 2 Way | 2.9 Cv | w/ Spg Rtn | 24V | MFT | SW | Belimo
Characterized Control Valve (HTCCV), 3/4", 2-way, Cv 2.9 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, MFT/programmable

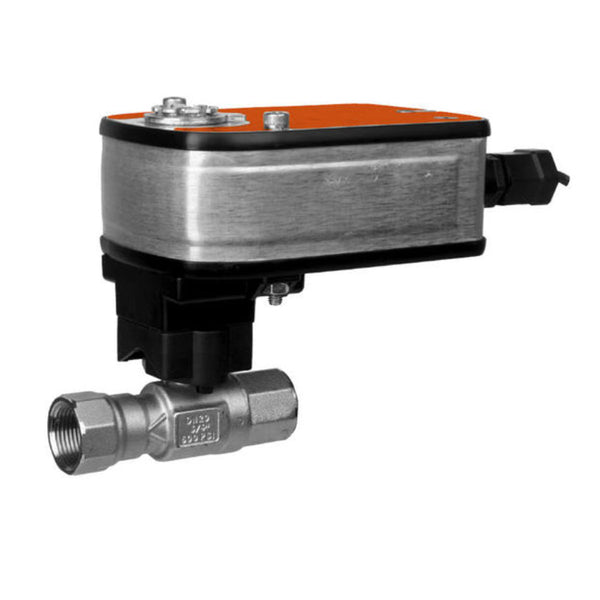

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B220HT290+LF24-MFT-S US
Documents and manuals
Belimo B220HT290+LF24-MFT-S US Documents
Overview
Details for B220HT290+LF24-MFT-S US
HTCCV | 0.75" | 2 Way | 2.9 Cv | w/ Spg Rtn | 24V | MFT | SW
Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include unit ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed to fit in compact areas where on/off, floating point and modulating control is required using 24 VAC.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 2.9
- End Fitting
- Internal thread
- Fluid
- High temperature hot water/low pressure steam up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPDT
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
