Documents: 52979848

Data sheet TE 67.03 Operating Instruction

52979848 | TSD-30 ; -4 ... +176 °F; two switching output (PNP) + 4...20 | Wika

Brand: WikaSKU: 52979848

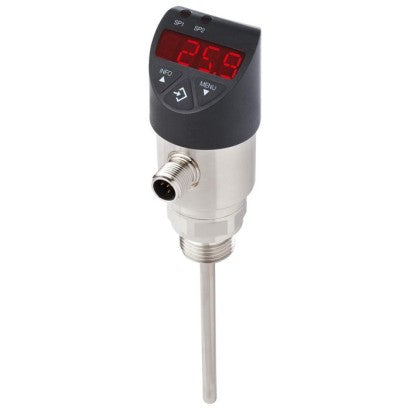

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 52979848

Jump to: Overview & Specifications Reviews

Overview Details for 52979848

TSD-30 ; -4 ... +176 °F; two switching output (PNP) + 4...20

Applications

Machine tools
Hydraulics
Coolant and lubrication systems
Machine building

Special features

Easily-readable, robust display
Intuitive and fast setup
Easy and flexible mounting configurations

Description

Award-winning in design and functionality
The successful design and the excellent functionality of the WIKA switch family were already confirmed by winning the "iF product design award 2009" for the PSD-30 pressure switch.

The robust LED display has been designed using 9 mm high characters (the largest possible) and with a slight incline in order to make reading the temperature as easy as possible from a long way off. A 14-segment display has been used, since it represents text very well.

The 3-key operation makes simple, intuitive menu navigation possible, with no need for additional assistance. The menu navigation is designed in accordance with the latest VDMA standard. The VDMA standard for fluid sensors (24574-2, part 2 temperature switches) has the aim of considerably simplifying the use of temperature switches by standardising menu navigation and display.

The control keys have been designed as large as possible and are arranged ergonomically to ensure fast and easy adjustments. Operation without any additional assistance is made easier through the tactile feedback.

Customised installation
The installation of the TSD-30 can be flexibly adapted to the individual mounting situation. Due to the almost unlimited rotation of the display and case by more than 300°, the display can be adjusted independently of the electrical connection. The display can thus always be aligned to face the operator, and the M12 x 1 connection positioned to suit the desired cable routing.

High quality
During development of the WIKA switch family a high value was placed on a robust design and the selection of appropriate materials suited to machine building applications. For this reason the case and the threaded connection of the electrical connector are made from stainless steel. Overwinding or tearing off the connector is therefore virtually impossible.

IO-Link
With the optional output signal in accordance with the IO-Link communication standard, the TSD-30 allows a fast integration into modern automation systems. IO-Link offers an even faster installation, parameterisation and higher functionality of the TSD-30
