52830606 | PG23HP-S.4"...F 30000 psi 9/16-18 UNF female, Autoclave | Wika

Brand: WikaSKU: 52830606

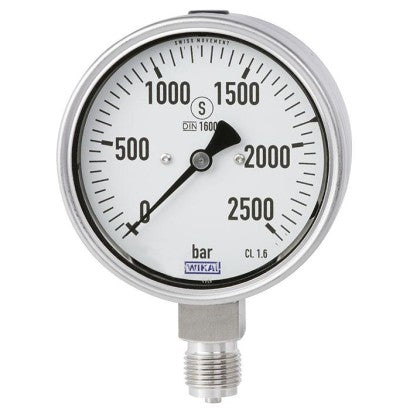

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 52830606

Jump to: Overview & Specifications Reviews

Overview Details for 52830606

PG23HP-S.4"...F 30000 psi 9/16-18 UNF female, Autoclave

Applications

For liquid media in high-pressure applications (e.g. water, hydraulic oil)
Test benches (e.g. for hydraulic components)
Water jet cutting
High-pressure cleaning
High-pressure generation

Special features

- Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of the DIN 16001 high-pressure standard
- Wetted parts from stainless steel 316L
- Long service life with static pressure profiles
- Scale ranges: 0 ... 2,000 bar, 0 ... 2,500 bar and 0 … 3,000 bar

Description

The model PG23HP-S Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 3,000 bar.

Typical measuring points for this pressure gauge can be found in water jet cutting, high-pressure cleaning and test bench construction.

WIKA manufactures and qualifies the model PG23HP-S in accordance with the requirements of the new DIN 16001 high-pressure standard in the "S3" safety version.

The safety version is made up of laminated safety glass, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the instrument. The proven, all-welded construction ensures a long service life and permanent sealing. The resistance to shock and vibration can be increased by the optional case filling.
