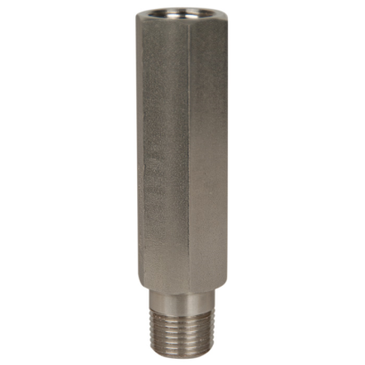

52233278 | 910.24 MINI SIPHON SS 1/2NPTF X 1/2NPTM 3.1 NACE | Wika

Brand: WikaSKU: 52233278

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 52233278

Jump to: Overview & Specifications Reviews

Overview Details for 52233278

910.24 MINI SIPHON SS 1/2NPTF X 1/2NPTM 3.1 NACE

Applications

Siphon for steam, hot vapors and liquids
Stainless steel version for corrosive media and corrosive ambient conditions
Super duplex stainless steel version available for applications requiring high strength and corrosion resistance
Process industry: mechanical engineering, plant construction, chemical/petro-chemical, power stations, and environmental technology

Standard Features

Materials:
Body: 316Ti SS (1.4571)
Internal chamber: 316Ti SS (1.4571)

Mounting position
Vertical or horizontal

Connection
½" NPT male to ½" NPT female

Flow
Male to female connection

Inlet Orifice
0.1575" (4mm)

Description

The WIKA mini-siphon is designed specifically to replace the old pigtail and coil siphon. The mini-siphon has a thermal barrier which protects the pressure gauge from harmful steam, hot vapors and liquids, and contains a unique inner chamber that reduces pressure surges and "water hammer". The mini-siphon also eliminates gauge whip and vibration that is typically found on traditional siphons by mounting the gauge closer to the process. When the mini-siphon is first installed, it is recommended to be filled with water or any other suitable separating liquid

Options (by special order)

Other thread connections: 1/4" NPT, G1/4B and G1/2B
Other materials: Monel 400, Hastelloy C276, Titanium, and Duplex
Material certificate (3.1 acc. to EN 10 204)
NACE certificate (2.2 acc. to EN 10 204)
Oxygen service (oil and grease free)
