45727473 | Hand-held pressure indicator - Model CPH6300 | Wika

Brand: WikaSKU: 45727473

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 45727473

Jump to: Overview & Specifications Reviews

Overview Details for 45727473

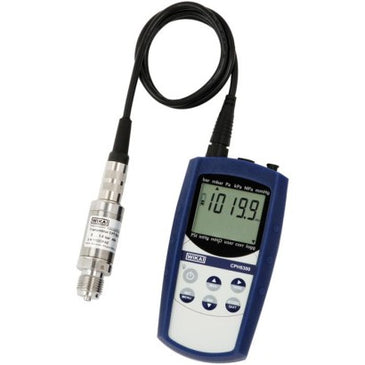

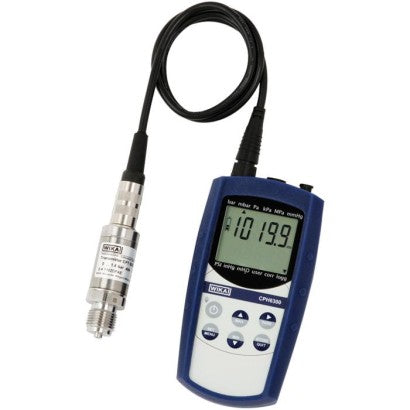

Hand-held pressure indicator - Model CPH6300

Applications of the digital pressure measuring instrument

Calibration service companies and service industry
Measurement and control laboratories
Quality assurance
Leak testing

Special Features of the digital pressure measuring instrument

Robust and waterproof digital indicator with interchangeable pressure sensors (plug-and-play)
Measuring ranges from 0 ... 25 mbar to 0 ... 1,000 bar (0 ... 0.4 psi to 0 ... 14,500 psi)
Pressure type: positive and negative gauge pressure, absolute pressure and differential pressure
Accuracy: 0.2 %, optional 0.1 % (incl. calibration certificate)
Software and complete service cases (incl. pumps) available

Description of the digital pressure measuring instrument

Extensive application possibilities
Stainless steel pressure sensors with measuring ranges up to 1,000 bar (14,500 psi) are available for the model CPH6300 hand-held digital pressure measuring instrument. The robust and waterproof design makes the CPH6300 ideal for use in adverse environments. The digital indicator automatically detects the measuring range of the connected pressure sensor and guarantees a highly accurate pressure measurement.

Functionality
The CPH6300 digital pressure measuring instrument can be used for measuring both gauge and absolute pressure. Differential pressure measurement is possible with the 2-channel version CPH6300-S2, and two connected model CPT6200 reference pressure sensors. Selectable pressure units here are bar, mbar, psi, Pa, kPa, MPa, mmHg, inHg, mH2O and one customer-specific unit.

An integrated data logger and various other functions such as Min., Max., Hold, Tare, zero point adjustment, alarm, power-off, peak value detection (1,000 measurements/s), average value filter, etc. ensure that the CPH6300 can be used for many different applications. The large, backlit display and also a long battery life complete the features of the CPH6300 digital pressure measuring instrument.

Software
In addition to the GSoft data logger evaluation software for the tabular and graphical representation of the logged data, WIKA-Cal calibration software for calibration tasks is also available. WIKA-Cal also offers, over and above PC-supported calibration, the management of the calibration and instrument data in an SQL database. A USB interface is available for the data transfer.
