2142735 | 910.13 SS NACE Sour Gas Service and Inspection certificate 3 | Wika

Wika | 2142735
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2142735

Documents and manuals

Wika 2142735 Documents

Overview

Details for 2142735

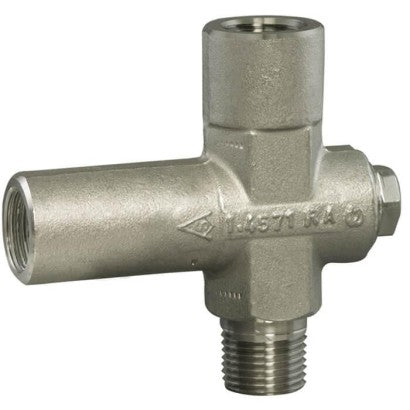

910.13 SS NACE Sour Gas Service and Inspection certificate 3

Applications

  • Adjustable overpressure protectors are intended to protect pressure gauges against the effect of pressures exceeding their maximum pressure rating
  • Stainless steel version for corrosive pressure media, even in corrosive ambience
  • Super duplex stainless steel version available for applications requiring high strength and corrosion resistance
  • Process industry: mechanical engineering and plant construction, chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology

Special Features

  • 7 different setting ranges selectable
  • Minimum pressure to 6 psi (0.4 bar)
  • Maximum pressure to 8700 psi (600 bar)
  • Overpressure safe up to 14,500 psi (1000 bar)
  • Vacuum safe

Description

The overpressure protector consists of a spring loaded piston valve. Under normal pressure conditions the spring holds the valve open. When the system pressure exceeds the set pressure, the force exerted by the spring is overcome and the valve closes. The valve will remain closed until the system pressure drops approx. 25 % below the closing pressure, where-upon the force of the spring will open the valve.
Factory setting see data sheet.

To change setting:
Turn adjusting screw clockwise - closing pressure higher
(or counter clockwise - closing pressure lower)

*Overpressure protectors must not be used as control devices.

Standard Features
½" NPT male inlet, female outlet
½" NPT to ¼" NPT adaptors available

Body
316Ti SS

Piston Valve
316Ti SS

O-Ring
FPM (FKM)

Operating Temperature (Media)
176 °F (80 °C maximum)

Specifications

Item Number 2142735
Brand Wika
